PAC-G16L

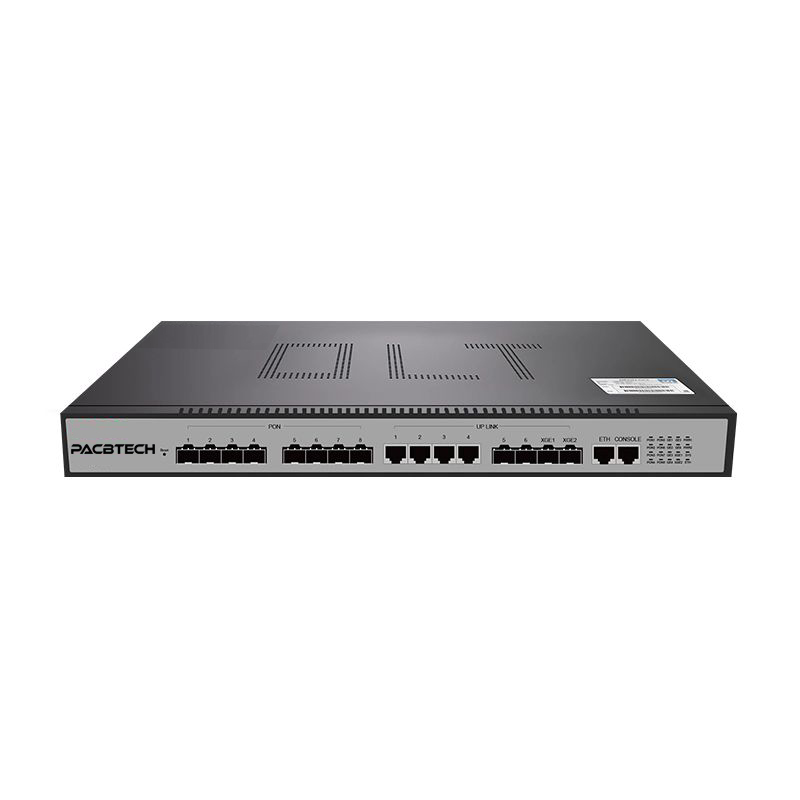

Product Introduction
PAC-G16L belongs 1U cartridge GPON OLT series.Good system stability and high reliability. Support various management methods like CLI, WEB, SNMP etc.
The product provides 16 GPON interfaces, with 4* Combo uplink interfaces or SFP interfaces, 2 uplink SFP+interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate the all network equipment, which greatly reduces the labor cost and time cost in the process of network construction. It is appropriate for situations like sparsely populated, remote and cost-sensitive areas, smart industrial parks, commercial premises, FTTH, etc. Each GPON port supinterfaces up to splitting ratio1:128 and 2048 GPON users, also supinterfaces different types of ONU based on different networks. 1U for easy installation and maintenance. It is an excellent choice for ISP deploying FTTH networks quickly.
Product Advantage
1. With HSGQ OLT, PON system can be easily managed even without any experience; HSGQ, SmartCloud management, FTTR and AON equipment provider; Independent R&D, steady supply, 24/7 and offline service, Broadcom chip
2. Fine apprearance of front port and dual fans form convection, to achieve heat dissipation nicely ;
3. Visual management,PON system status and flow status are clear at a glance.
4. Dual power redundancy backup
5.16 GPON interfaces, 2 *10G SFP+, to meet the growing data demand
6.L3 switching function, which provides L3 dynamic routing protocol (RIP/OSPF), automatically switching router for uplink to keep safe of data transmission, easy to network expansion, reduce maintenance workload.
7. Support cloud management;
A. Access equipment status and configuration information anytime and anywhere. Improve customer experience;
B. More abundant and simpler of Installation and configuration, reducing costs and improving efficiency.
Equipment information are automatically recorded by the cloud platform;
C. Abundant project management functions;
D. More efficient of maintain , better support for your customers
intelligent on-site alarm mechanism, real-time cloud remote alarm notification
Cloud platform can also obtain alarm notification, and remote inspection, control and configuration of equipment.
This alarm is conductive to remote administrators, such as project engineers, to detect problems and restore in time.
Remote configuration includes restarting PoE interfaces, VLAN setting, batch equipent upgrades, etc.
Technical Parameters
| Item | HSGQ-G16L |
| Interface | 16*GPON |
| 4*10/100/1000M Combo | |
| 2*10G SFP+ | |
| PON | physical interface: SFP slot |
| Type： 1000BASE-PX20+/PX20++/PX20+++ | |
| split ratio on single PON port： 1:128 | |
| Flash | 32MB |
| DDR | 1GB |
| Size | 442mm x 260mm x 44mm |
| Weight | ＜5kg |
| Standard Protocol | IEEE802.3(10Base-T) |
| IEEE802.3u(100Base-TX) | |
| IEEE802.3z (1000BASE-X) | |
| IEEE802.3ab (1000Base-T) | |
| IEEE802.1Q(VLAN) | |
| Management Port | Console port/ETH port |
| Environment | Operating environment：-10°C~55°C |
| storage environment：-40°C~80°C | |
| Storage Humidity：5%~95%(No condensation) | |
| power supply | AC:100V-240V 50/60Hz |
| power dissipation | ＜60W |
| PON function | Support Auto registration |
| ONU Whitelist and blacklist | |
| DBA Configuration | |
| P2P | |
| ONU Authorization | |
| Platform Management Features | Device list |
| Project Management | |
| version Release | |
| Lisense management | |
| Permission management | |
| User management | |
Configuration and Management | CLI,WEB,SNMP/NMS,CLOUD |
| Software and firmware upgrades | |
| Chinese/English command prompt | |
| Ping and Debug diagnosis | |
| User/Log/Alarm management | |
| L3 Functions | support Static Routing |
| support DHCP servers,DHCP Snooping and DHCP proxy | |
| support OSPF | |
| L2 Functions | Support VLAN, VLAN conversion and QinQ |
| Support up to 4094 VLAN | |
| support Port Mirror | |
| support RSTP and MSTP (recovery time <1s) | |
| support link aggregation(recovery time <10ms) | |
| support storm control | |
| Support IGMP Snooping/proxy | |
| Support port isolation | |
| Support ACL Access Control based on data stream | |
| SupportQoS based on port, VID, TOS, and MAC address | |
| Support Encrytion of PON port transmitting data |
Product Uses
Multi-scenari FTTH solution and abundant terminal type optional
life network for common residence
Office network
Hotel apartment network
Commercial network for High-end residence
Wireless network for Government-enterprise
video surveillance network
