Product Introduction

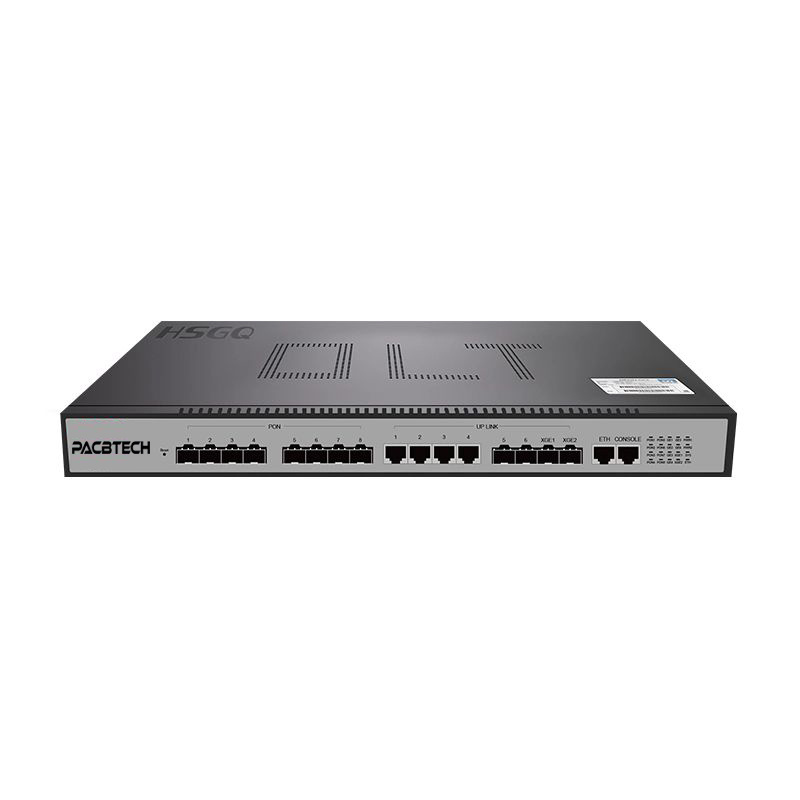

PAC-G08 belongs 1U cartridge GPON OLT series.Good system stability and high reliability. Support various management methods like CLI, WEB, SNMP etc.

The product provides 8 GPON interfaces, 4*uplink interfaces, 2 SFP and 2 uplink SFP+interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate the all network equipment, which greatly reduces the labor cost and time cost in the process of network construction. It is appropriate for situations like sparsely populated, remote and cost-sensitive areas, smart industrial parks, commercial premises, FTTH, etc. Each GPON port supinterfaces up to  splitting ratio1: 128 and 1024 GPON users, also supinterfaces different types of ONU based on different networks. 1U for easy installation and maintenance. It is an excellent choice for ISP deploying FTTH networks quickly.

Product Advantage

1. Support cloud management;

A. Access equipment status and configuration information anytime and anywhere. Improve customer experience;

B.  More abundant and simpler of Installation and configuration, reducing costs and improving efficiency.

Equipment information are automatically recorded by the cloud platform;

C. Abundant project management functions;

D. More efficient of maintain , better support for your customers

intelligent on-site alarm mechanism, real-time cloud remote alarm notification

Cloud platform can also obtain alarm notification, and remote inspection, control and configuration of equipment.

This alarm is conductive to remote administrators, such as project engineers, to detect problems and restore in time.

Remote configuration includes restarting PoE interfaces, VLAN setting, batch equipent upgrades, etc.

Cloud managerment/Broadcom Chip/Anatel Authentication/10G Uplink/L3 Switching function/WEB UI/IPv4 IPv6 dual stack

2. Fine apprearance of front port and dual fans form convection, to achieve heat dissipation nicely ;

3. Visual management,PON system status and flow status are clear at a glance.

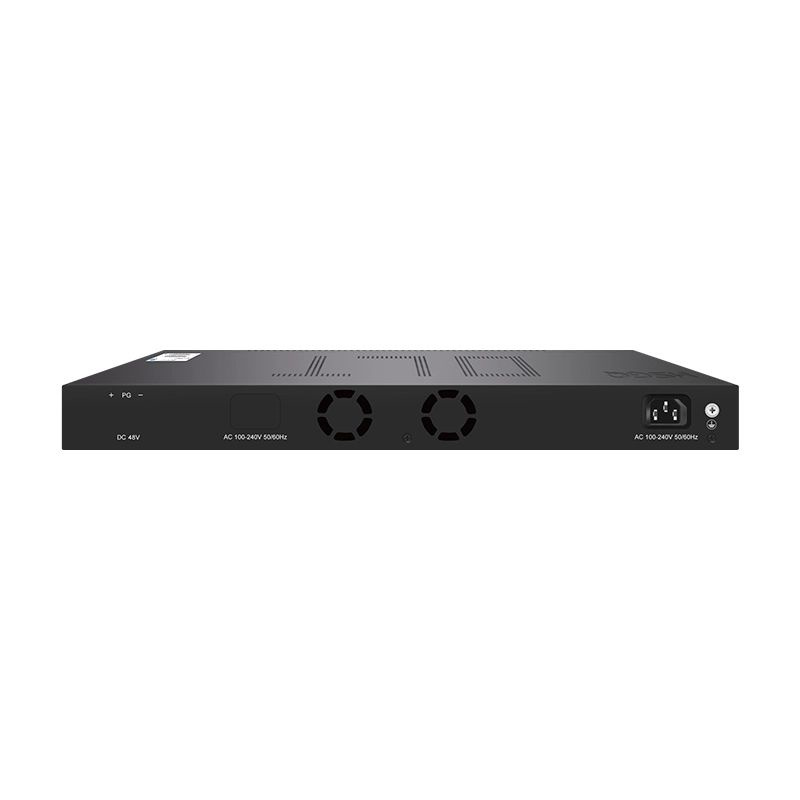

4. Dual power redundancy backup

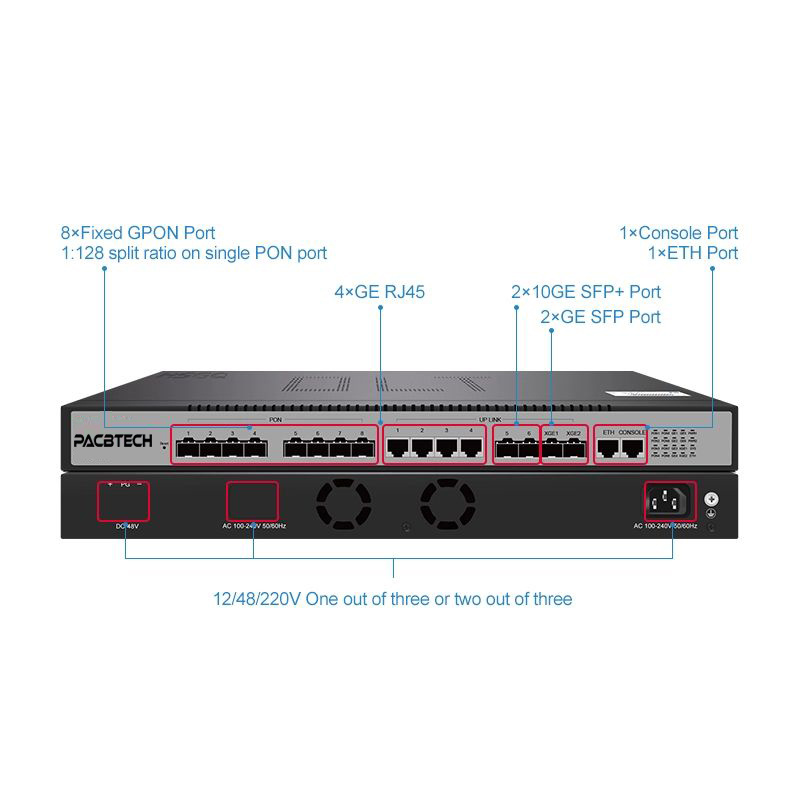

5. 8 GPON interfaces, 2 *10G SFP+, to meet the growing data demand

6. L3 switching function, which provides 3 layer dynamic routing protocol (RIP/OSPF), automatically switching router for uplink to keep safe of data transmission, easy to network expansion, reduce maintenance workload.

7. Plug and play without configuration

DBA/ Line/service /TR069/SIP voice template configuration, easy to deploy and saves the space of machine room.

Technical Parameters
