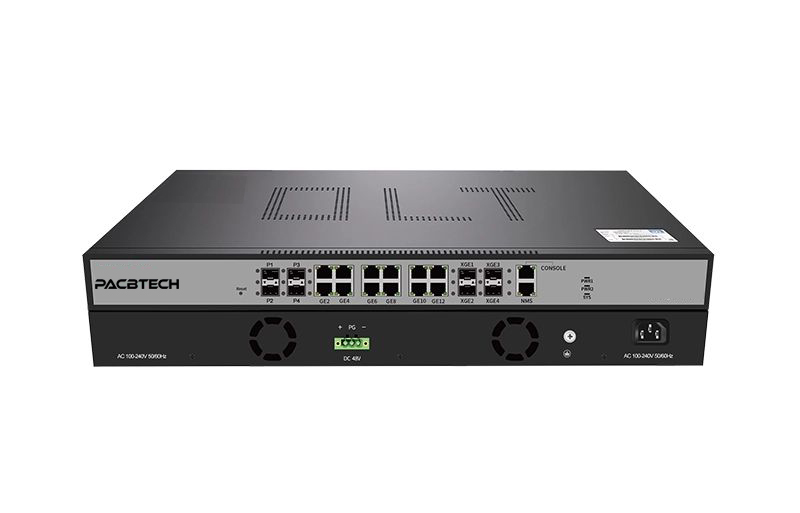

Product Description
Feature
● Support Full Wier-Speed Forwarding
● 16K MAC address table
● Complete network management functions
● Support flexible DBA, up and down traffic speedcontrol.
● Support IP ToS, IEEE802.1Q
● Support port aggregation
● Port-based traffic control, traffic shaping.
● Support ONU auto-discovery, and auto-registration.
● Support the automatic loop-back test function.
● VLAN powerful features, including VLAN Stacking, Trunk, Translation.
● Support IGMP Function
● Support ACL/QoS
Advantage
● EPON: OLT follows the technical standard of lEEE802.3ah and China telecom. (YD/T 1475-2006)
● Optical link diagnosis: complete warning mechanism
● High reliability: supports dual power supply(Default single power supply).
● Dimension: 1U cassette save space, low power consumption
● Uplink: support electrical and optical modules, can be flexibly configured according to different networking.
● Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration.
Specification
Technical Parameter
| Model | HSGQ-XE04S |
| DDR | 1GB |
| FLASH | 32MB |
| Size(L*W*H) | Product size: 442mmx260mmx44mm Packagesize: 520mmx372mmx87mm |
| Weight | <5kg |
| Uplink | QTY: 4 Copper: 12*10/100/1000M auto-negotiable, RJ45 SFP: 4*10G SFP+ slots |
| PON | QTY: 4 Physical Interface: 4 PON SFP slots Optical module Type: 1000BASE-PX20+/PX20++/PX20+++ Max splitting ratio: 1:64 |
| Management Ports | CONSOLE port/NMS port |
| Power Input | AC: 100V~240V 47/63Hz |
| PON function | Support auto register Blacklist and whitelist onu DBA configure P2P ONU authorization |
| Working Temperature | -10°C~60°C |
| Humidity | 5%~95% |
| Maintenance | Telnet remote maintenance |
| Layer 2/3 function | VLAN,QinQ,link aggregation, broadcast strom control Support 4094 VLAN;performance statistic 16K MAC address;mac address management Port mirror Support RSTP and MSTP SupportIGMP Snooping/proxy Support 512 router hosts Support 64 router subnets User management Port isolation ACL access control based on data stream QoS based on port, VID, TOS and MAC address; Encrytion ofPON port transmitting data Support 802.1Xauthentication |
| Configuration and Management | CLI,WEB,SNMP/NMS SSHv1/v2 Software and bootrom upgrade by TFTP and FTP Record and download log Chinese/English command prompt Ping Debug diagnosis User management; Alarm management. |
| Support standard | IEEE 8023ah EPON IEEE802.3(10Base-T) IEEE8023u(100Base-TX) IEEE8023z(1000BASE-X) IEEE8023ab(1000Base-T) IEEE802.1Q(VLAN) IEEEE802.1d(STP) IEEEE8021W(RSTP) IEEE802.1p(COS) IEEE802.1x(Port Control) IEEE802.3x(flow-control) |
