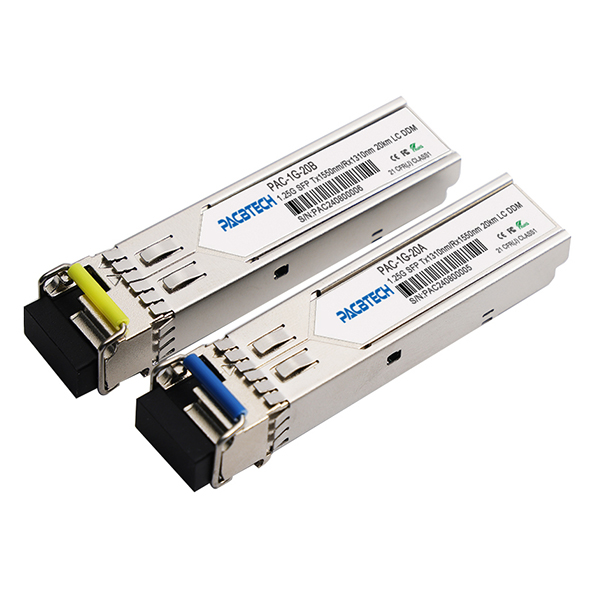

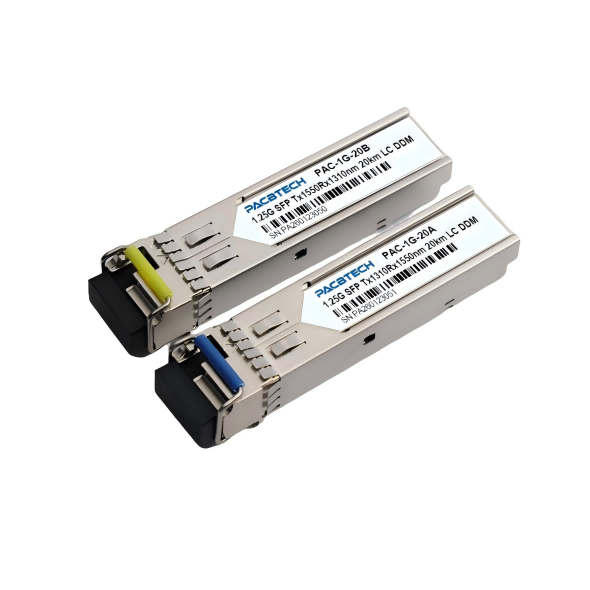

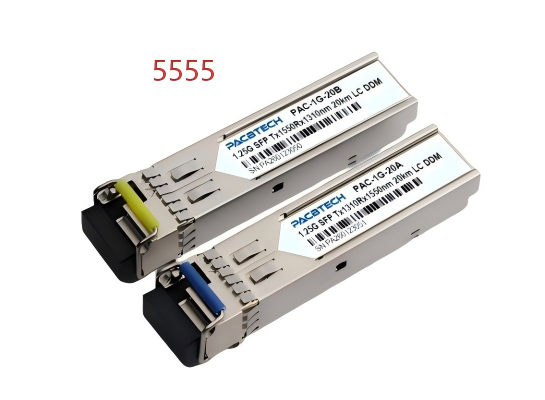

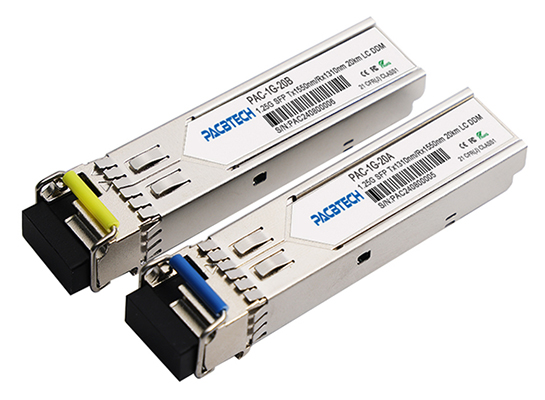

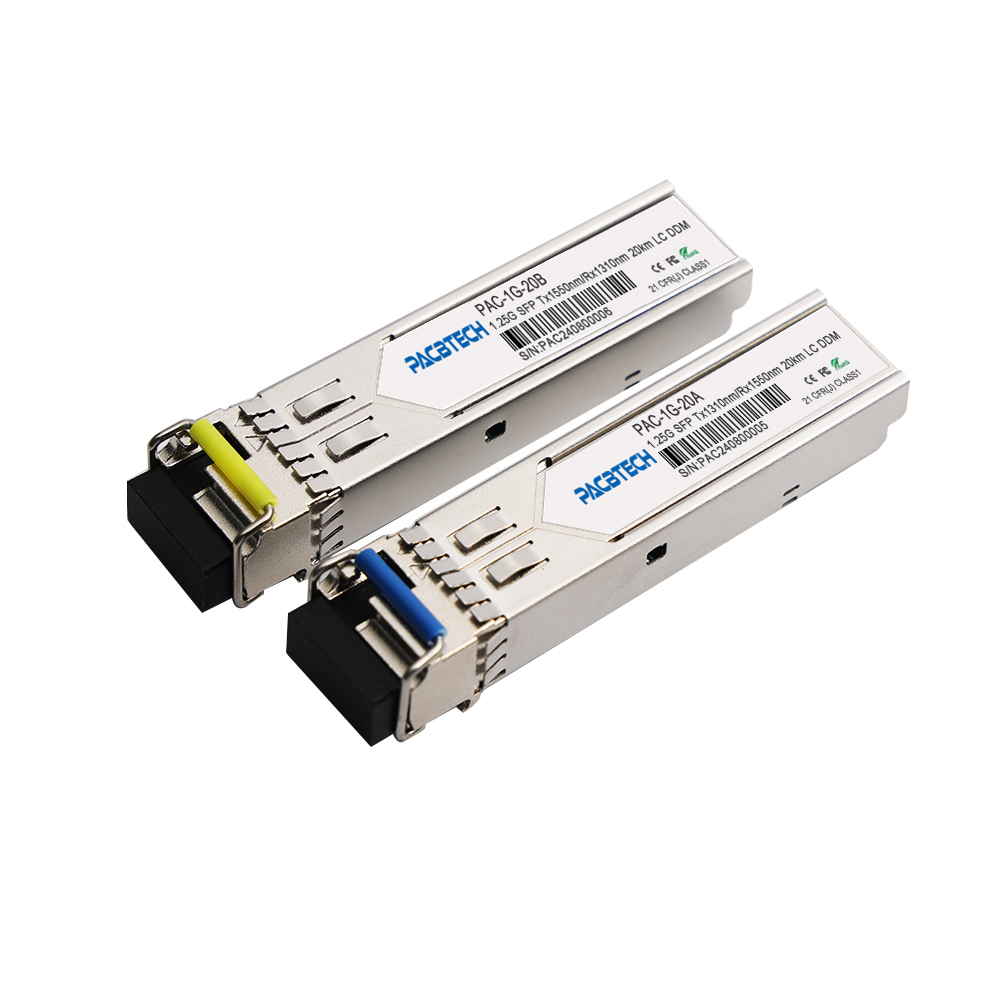

1.25G BIDI SFP

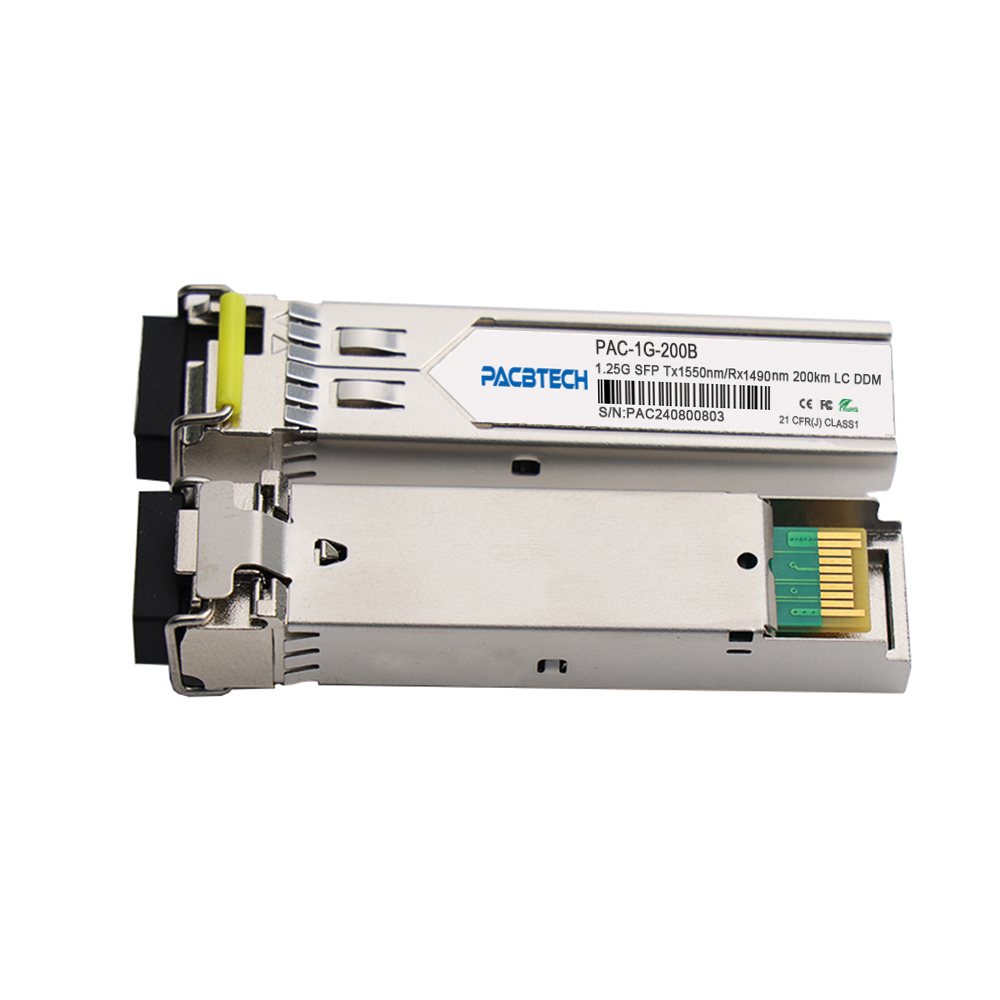

PACBTECH independently developed 1.25G SFP optical module supports a variety of transmission distances, including 550m, 2km, 10km, 20km, 40km, 80km, 120km, 160km, 180km, 200KM. Its communication protocol complies with IEEE802.3x\z\ab, the interface protocol complies with SFF-8472, and the packaging protocol complies with SFP MSA. The 1.25G SFP optical module is a high-speed, flexible and reliable fiber-optic communication interface module widely used in scenarios such as network equipment interconnection, data centers, cloud computing, enterprise networks and campus networks, supporting a transmission rate of up to 1.25Gbps.

Model:

1.25G BIDI SFP 3KM~200KM

Inquiry

Optical Transceivers

10G Transceiver

SFP Transceiver

40G QSFP+

100G QSFP28 Transceiver

16/25/32G Transceiver

200/400/800G Transceiver

PON SFP

1*9 Transceiver

DAC/AOC Cable

Fiber to Ethernet Converter

OLT

ONU/ONT

1.25G/2.5G XPON STICK

Accessory

SFP Programmer

1.25 BIDI SFP Transceiver

Features

155M/1.25G/2.5Gbps Single Fiber Bi-directional Transmission
Hot-pluggable SFP Footprint
Single LC or SC Connector optional
Wide Distance Supported from 3m to 160km
Built-in Digital Diagnostic Functions
Comply with SFP MSA,SDH/SONET, IEEE Std 802.3
Operation Temperature Range 0~70°C or -40~85°C Optional
Single 3.3V Power Supply
RoHS-6 Compliant

Standard part

P/N	Data Rate	Reach	Tx	Rx	Output Power	Sensitivity
PAC-1G-2A/B	1.25Gbps	2KM	1310/1550nm FP	PIN	-9 ~ -3dbm	≦-21dbm
PAC-1G-30A/B	1.25Gbps	30KM	1310/1550nm FP	PIN	-9 ~ -3dbm	≦-23dbm
PAC-1G-20+A/B	1.25Gbps	20KM	1310/1490nm FP	PIN	-9 ~ -3dbm	≦-23dbm

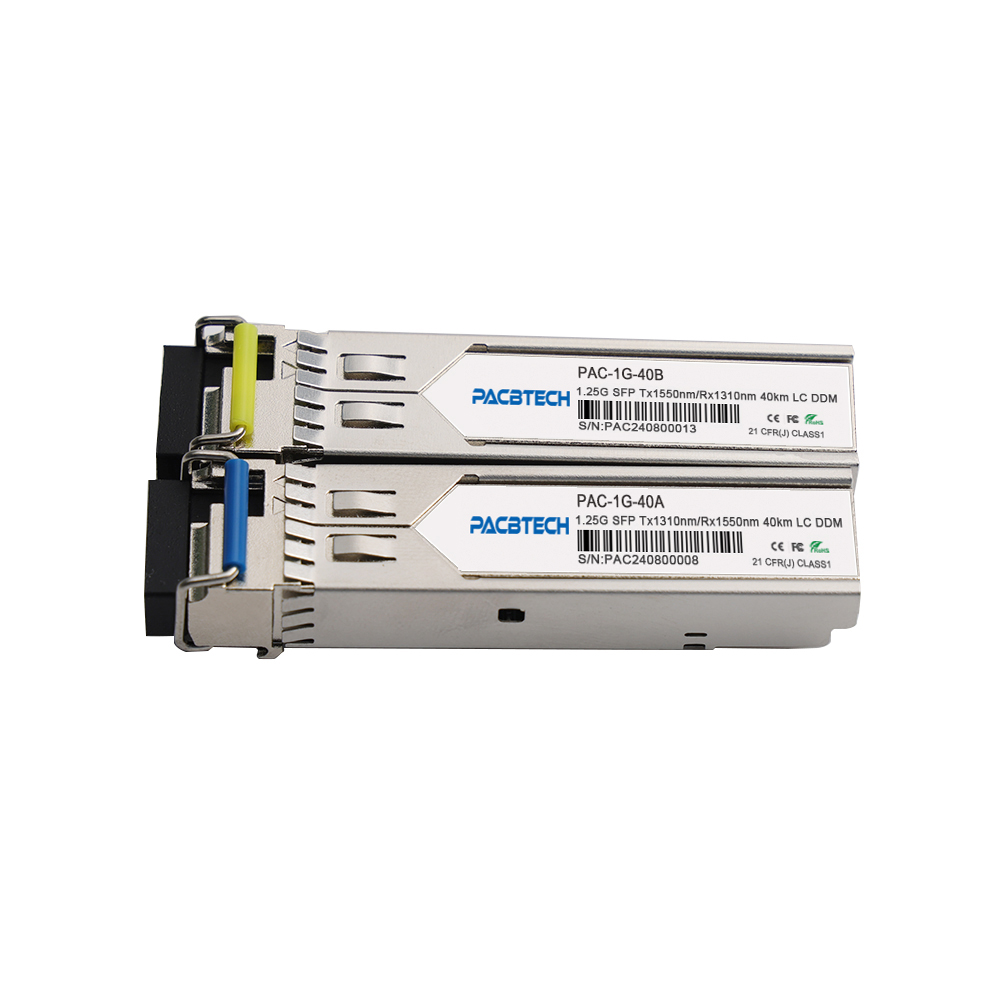

PAC-1G-40A/B	1.25Gbps	40KM	1310/1490nm FP	PIN	-2 ~ -3dbm	≦-26dbm
PAC-1G-40+A/B	1.25Gbps	40KM	1310/1550nm DFB	PIN	-2 ~ -3dbm	≦-26dbm
PAC-1G-80A/B	1.25Gbps	80KM	1490/1550nm DFB	PIN	-2 ~ -3dbm	≦-28dbm
PAC-1G-120A/B	1.25Gbps	120KM	1490/1550nm DFB	APD	-1 ~ -4dbm	≦-30dbm

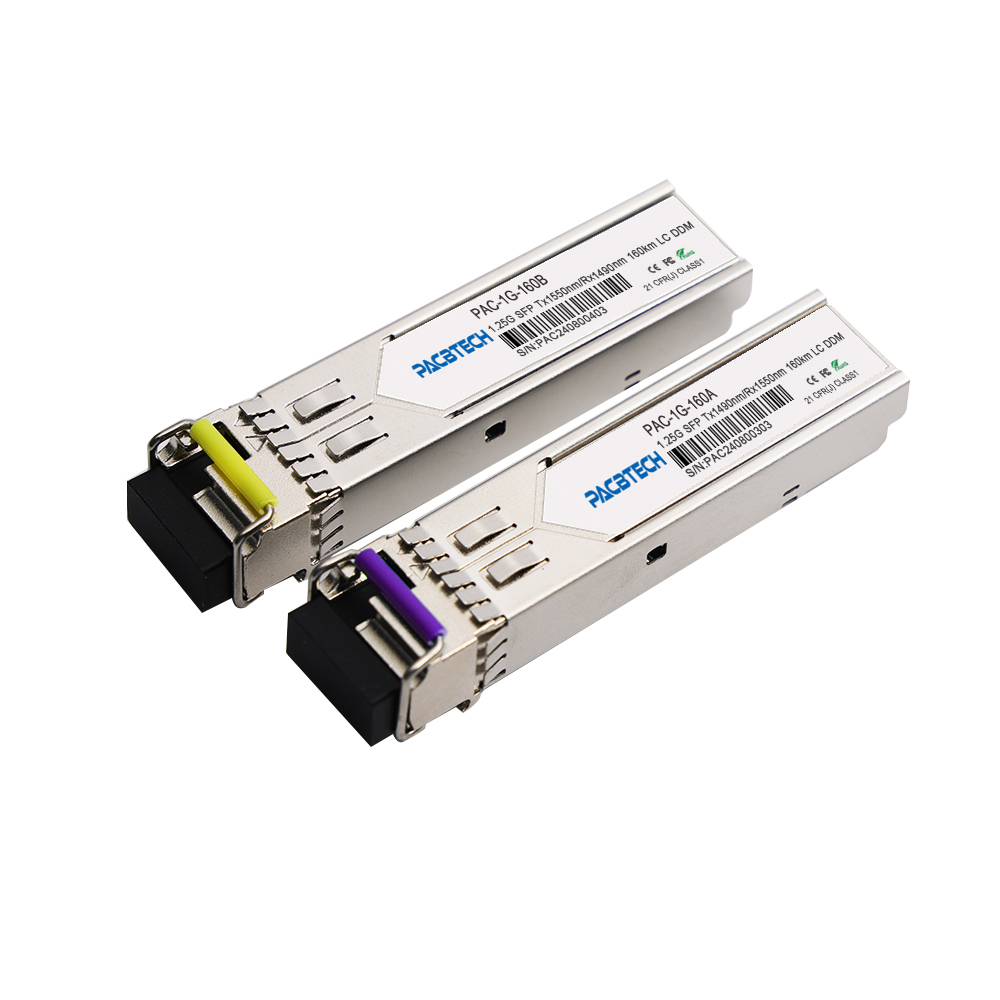

PAC-1G-160A/B	1.25Gbps	160KM	1490/1550nm DFB	APD	-1 ~ -4dbm	≦-32dbm
