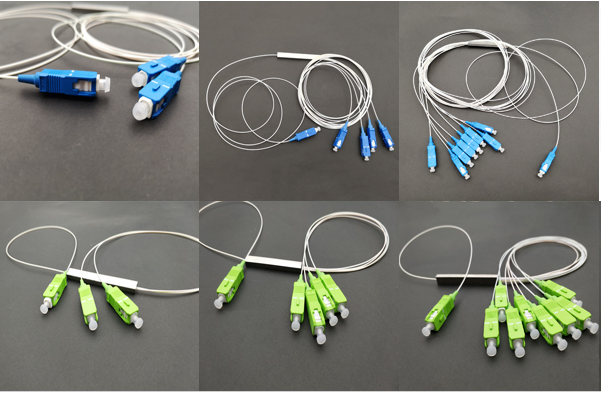

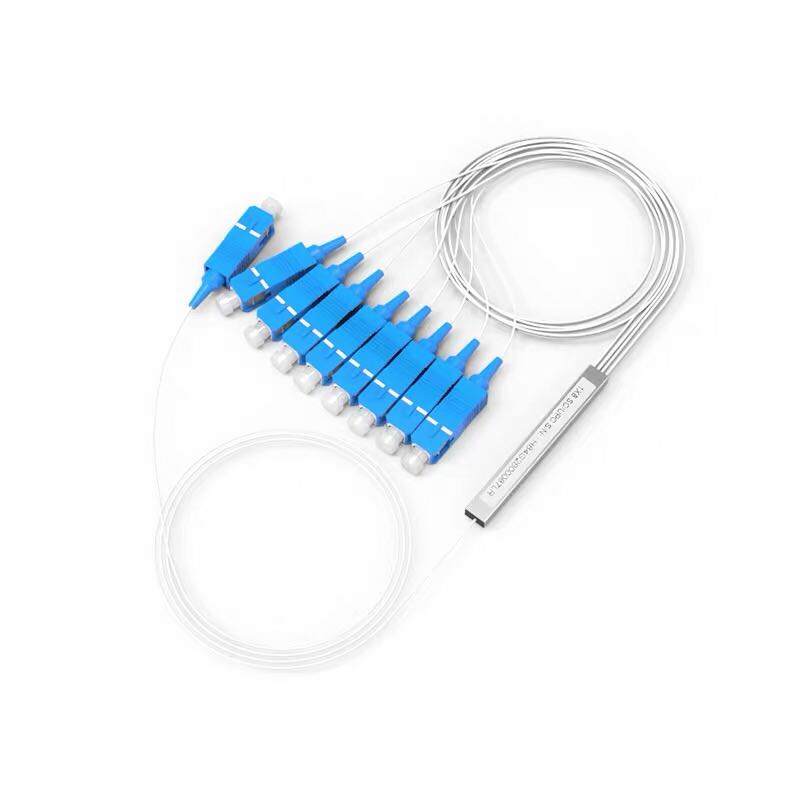

1x2, 1x4, 1x8, 1x16, 1x32, 1x64 Steel Tupe PLC Splitter Optional
Notes:
1, The FIBER optic splitter PLC have mini type, LGX type, Rack-mounted type and Tray-Assebmly type for customer's chocie
2, All the type fiber optic splitter have channel 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 1x128, and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128.
3, The mini type Fiber Opitc Splitter PLC could be with connector and also could be without connector.
4, The Connector type for fiber optic splitter PLC are SC, LC, FC, ST, etc.
5, Special Channel like, 1x3, 1x5, 1x12 1x24, etc. are also available for special design.
Technical Parameter
Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Fiber Type | / | G.657A, or customized |
Operating Wavelength | nm | 1260~1650 |
Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 |
PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
Return Loss | Min | dB | 55(P Grade)/50(S Grade) |
Directivity | Min | dB | 55 |
Operating Temperature | ℃ | -40 ~ +85 |
Storage Temperature | ℃ | -40 ~ +85 |
Dimension(L×W×H) | mm | 100×80×10 | 120×80×18 | 141×115×18 |
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
14px; white-space: normal; background-color: rgb(255, 255, 255); outline: none !important;">
Parameter | Unit | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Fiber Type | / | G.657A, or customized |
Operating Wavelength | nm | 1260~1650 |
Insertion Loss | P | Max | dB | 4.0 | 7.3 | 10.6 | 13.9 | 17.2 | 20.8 |
S | Max | dB | 4.2 | 7.5 | 11.0 | 14.5 | 17.5 | 21.0 |
PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Loss Uniformity | Max | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Return Loss |
|
|
|
|
|
|
|
|
Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Fiber Type | / | G.657A, or customized |
Operating Wavelength | nm | 1260~1650 |
Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 |
PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
Return Loss | Min | dB | 55(P Grade)/50(S Grade) |
Directivity | Min | dB | 55 |
Operating Temperature | ℃ | -40 ~ +85 |
Storage Temperature | ℃ | -40 ~ +85 |
Dimension(L×W×H) | mm | 100×80×10 | 120×80×18 | 141×115×18 |
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
