100G QSFP28-4*25G SFP28 AOC

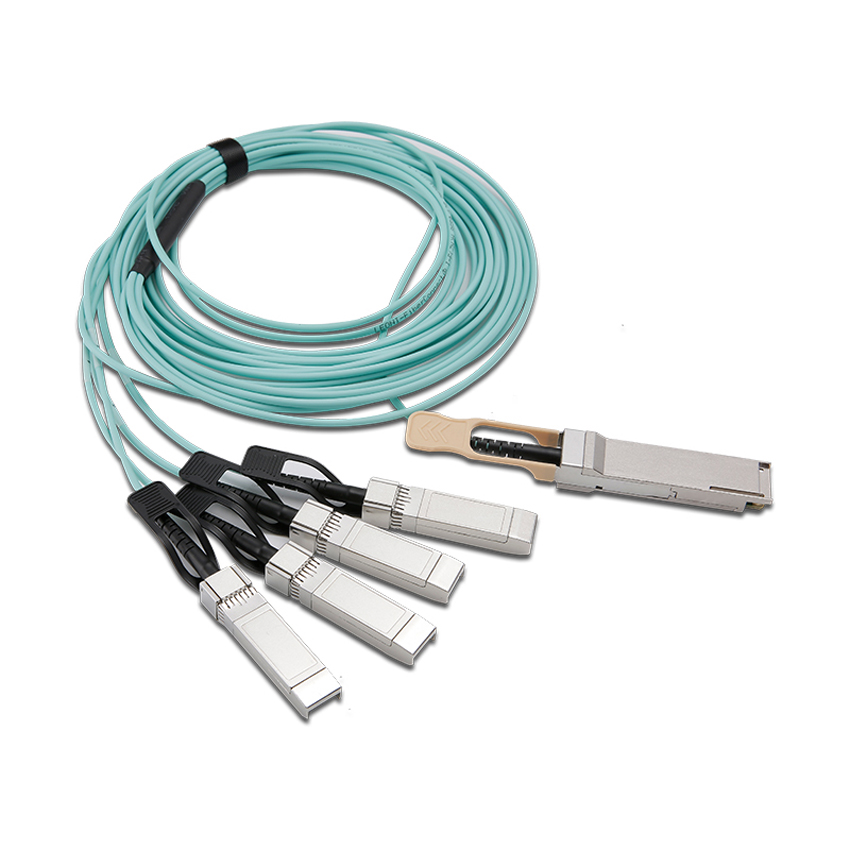

QSFP28-4SFP28-AOC active Optical cable, integrated four data channels, the total bandwidth of 100Gbps. 4 transmission channels, each channel can run at 25.3125 Gbps. QSFP + to 4x SFP + AOC cables are 100GBase QSFP + hybrid cables. One end is a QSFP + optical connector and the other end is a 4 SFP + optical connector. Transmission distance of not more than 100 meters. The FIBER optic cable is a high-performance Module for short-range multi-channel data communications and interconnect applications.

Features

1. OM3/OM4 MMF optical cable

2. Full duplex 4 channel 850nm parallel active optical cable

3. Transmission data rate up to 25.3125Gbit/s per channel

4. SFF-8665 QSFP+ compliant housing and hot pluggable electrical interface

5. Management Interface and digital diagnostic monitoring(DDM) through I2C

6. 4ch 850nm 25G VCSEL array

7. 4ch 25G PIN photo detector array

8. Support serial ID function through EEPROM

9. Power consumption less than 2.5W

10. Operating case temperature 0ºC to +70ºC

11. 3.3V power supply voltage

12. RoHS 6 compliant

Application

13. Switch / router / HBA / SAN, NIC card

14. Servers and storage devices

15. Data center network

16. Fiber Channel

17. InfiniBand FDR/EDR

18. 100Gbs Ethernet

Order Information：
