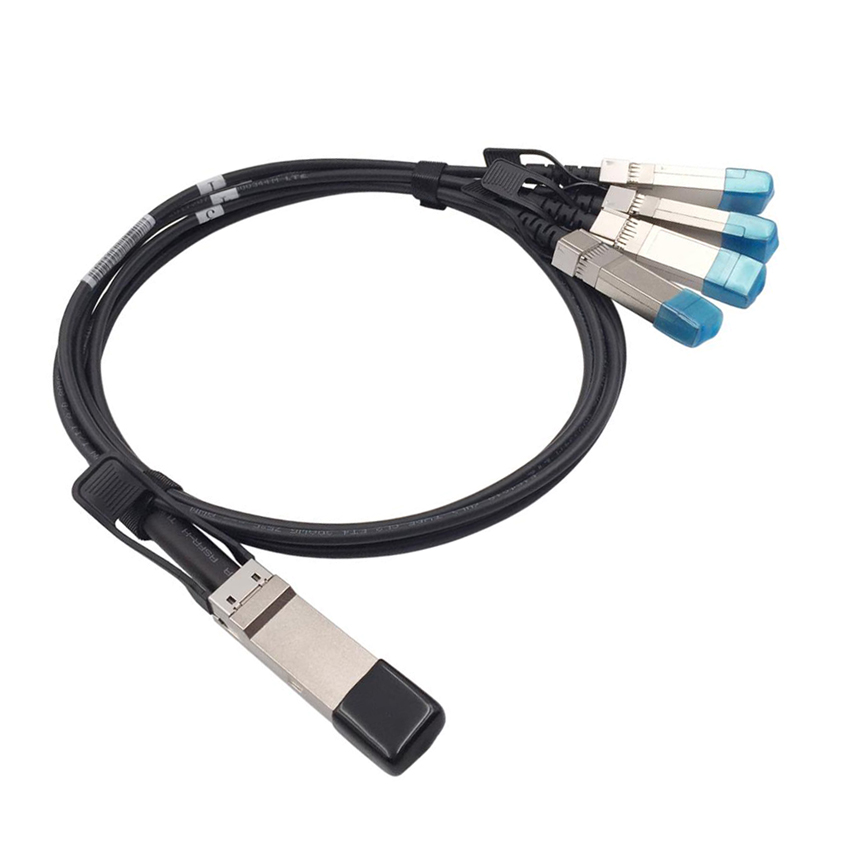

100G QSFP28-4SFP28 Direct Attach Cable (DAC)

Description

100G QSFP28 passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.

100G QSFP28 DAC Cable Designed for applications in the data center,networking and telecommunications markets that require a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.

Featuresand Benefits

·

Compatible with IEEE 802.3bj,IEEE 802.3by and InfiniBand EDR

Supports aggregate data rates of 100Gbps

Optimized construction to minimize insertion loss and cross talk

Backward compatible with existing QSFP+ connectors and cages

Pull-to-release slide latch design

26AWG through 30AWG cable

Straight and break out assembly configurations available

Customized cable braid termination limits EMI radiation

Customizable EEPROM mapping for cable signature

RoHS compliant

·

Applications

Switches,servers and routers

Data Center networks

Storage area networks

High performance computing

Telecommunication and wireless infrastructure

Medical diagnostics and networking

Test and measurement equipment

·

IndustryStandards

100G Ethernet(IEEE 802.3bj)

25G Ethernet(IEEE 802.3by)

InfiniBand EDR

SFF-8665 QSFP+ 28G 4X Pluggable Transceiver Solution(QSFP28)

SFF-8402 SFP+ 1X 28Gb/s Pluggable Transceiver Solution(SFP28)

Order Information ：
