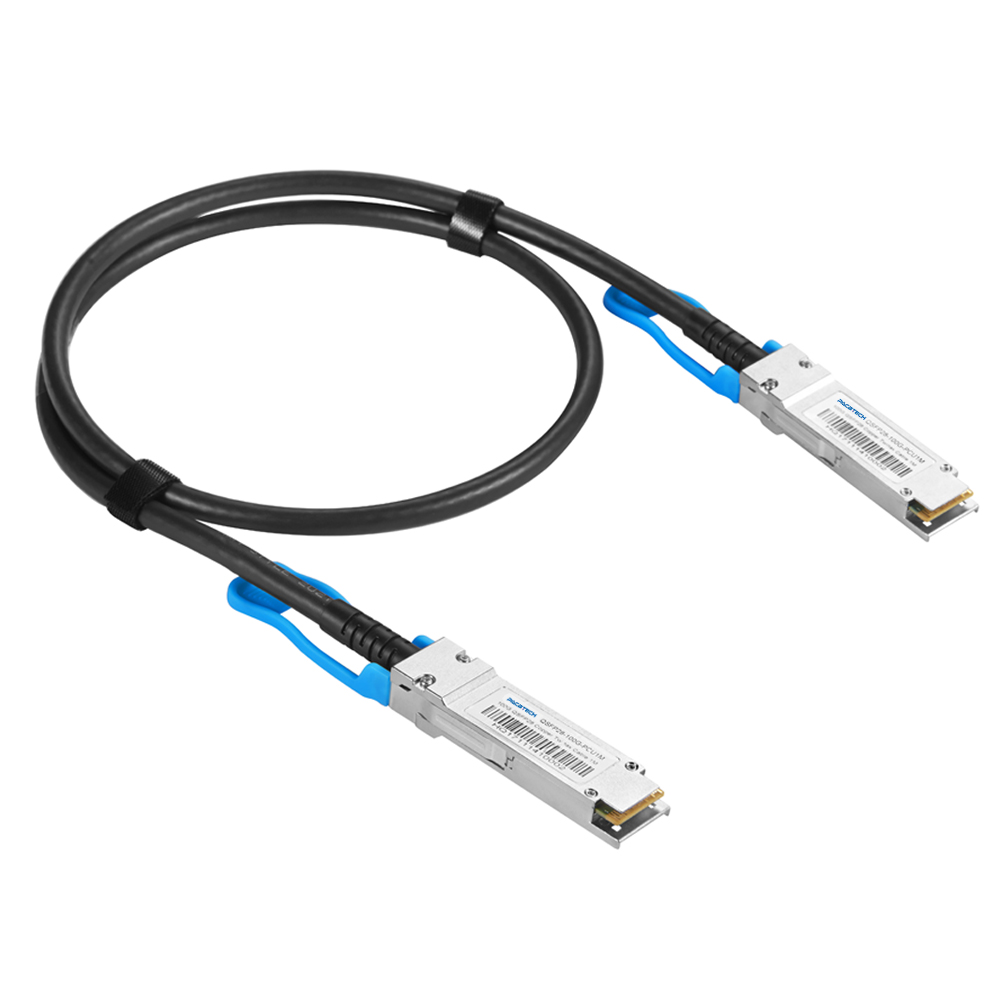

100G QSFP28 to QSFP28 DAC Cable Direct Attach Cable (DAC)
1. Applications * 100 Gigabit Ethernet * FIBER Channel over Ethernet * Data storage and communication industry * Switch/router/HBA * Enterprise network * SAN * Data Center Network 2. Features * QSFP28 conforms to the Small Form Factor SFF-8665 * 4-Channel Full-Duplex Passive Copper Cable Transceiver * Support for multi-gigabit data rates :78Gb/s (per channel) * Maximum aggregate data rate: 100Gb/s (4 x 78Gb/s) * Copper link length up to 3m (passive limiting) * High-Density QSFP 38-PIN Connector * Power Supply :+3.3V * Low power consumption: 0.02 W (typ.) * I2C based two-wire serial interface for EEPROM signature which can be customized * Temperature Range: 0~ 70 °C * ROHS Compliant 3. Description 100G QSFP28 Passive Copper Cables(ND-P7D30-XXX) are high performance，cost effective I/O solutions for 100G LAN, HPC and SAN applications. The QSFP28 passive copper cables are compliant with SFF-8436. It is offer a low power consumption，short reach intercom- nect applications. The cable each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 100Gb/s.
