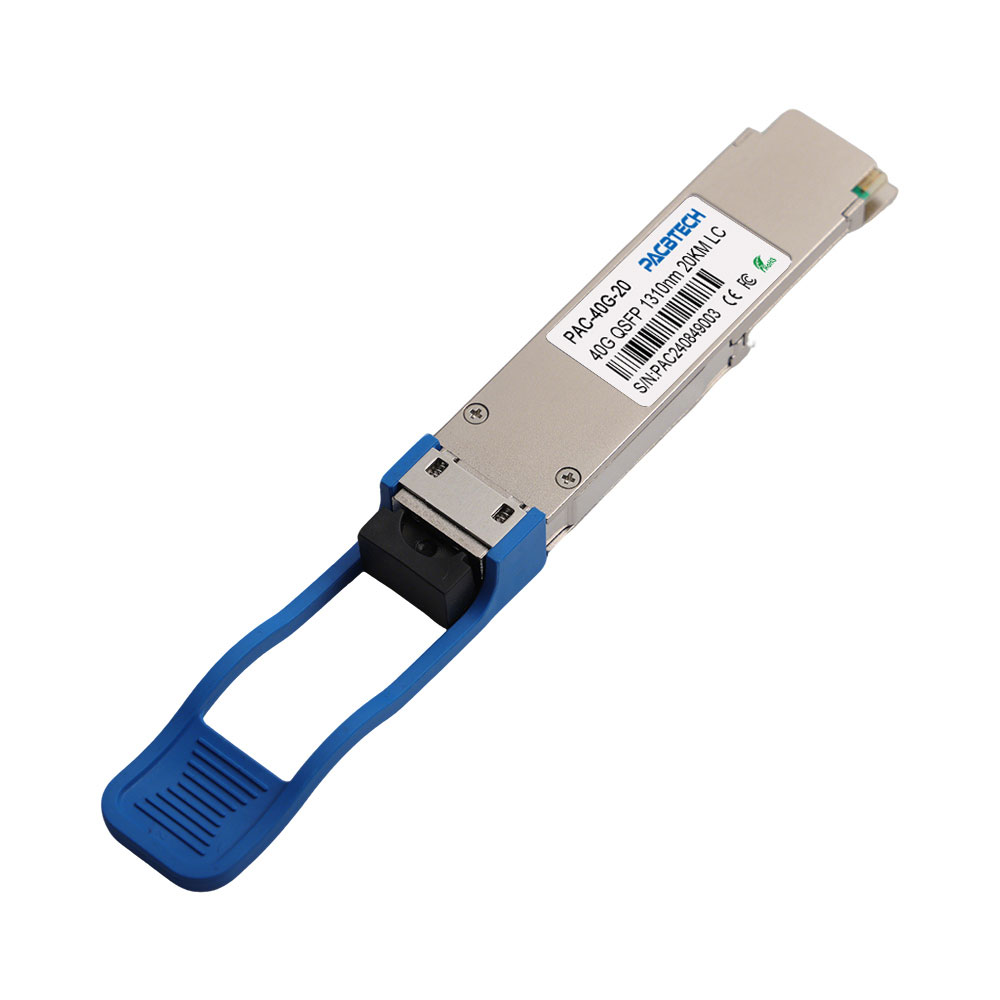

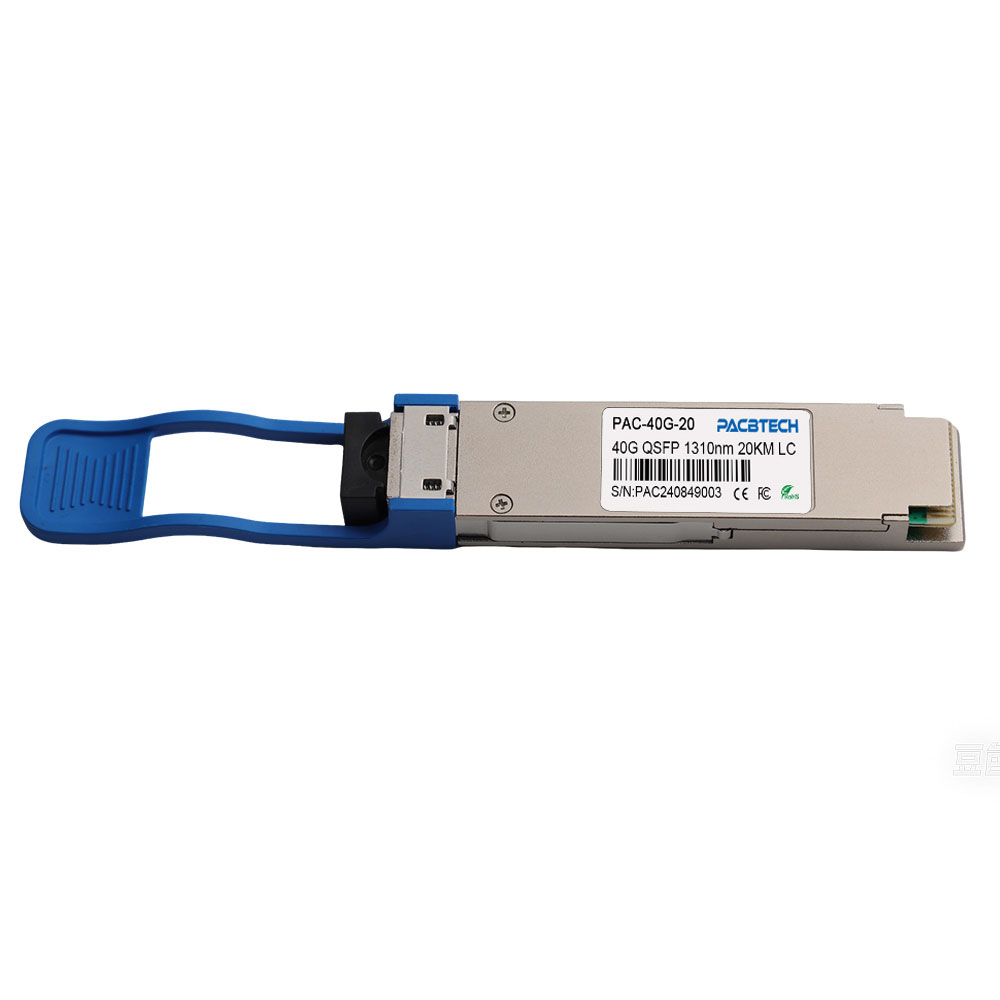

40G QSFP+ LR4 20km 1310nm LC Connector
Features:
l Compliant to the industry standard SFF-8436 QSFP+ Transceiver Specification
l Up to 11.2Gb/s data rate per wavelength
l 4 CWDM lanes MUX/DEMUX design
l Up to 20km transmission on single mode fiber (SMF)
l Operating case temperature: 0 to 70℃
l Maximum power consumption 3.5W
l LC duplex connector
Compliance
l IEEE802.3ba 40GBASE-LR4
l SFF-8436 QSFP Specification
l InfiniBand Architecture QDR Specifications
Absolute Maximum Ratings
Parameter | Symbols | Min | Typical | Max | Unit | Notes |
Storage Temperature | TSTG | -40 | - | +85 | ºC |
|
Operating Temperature | Top | 0 |
| 70 |
|
|
Operating Relative Humidity | RH | 0 | - | 85 | % |
|
3.3V Supply Voltage | VCC | -0.5 | - | +3.6 | V |
|
