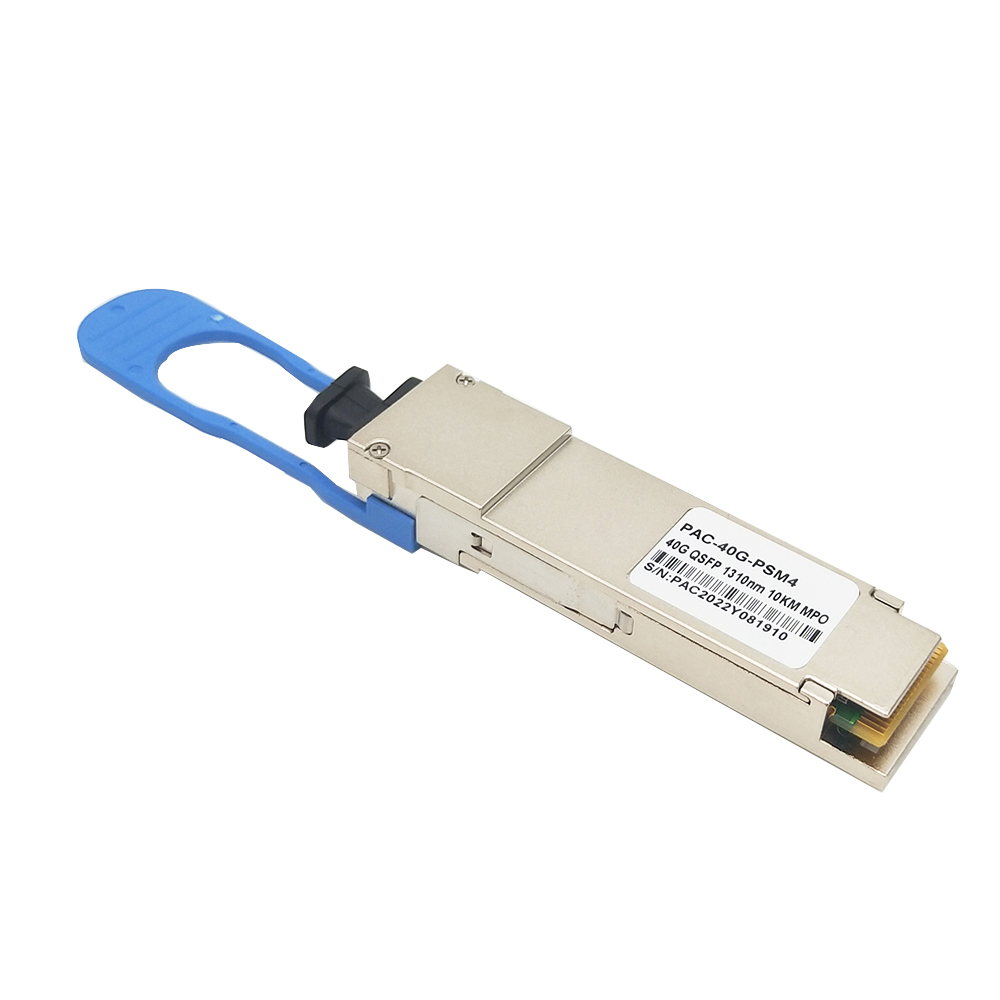

40G QSFP+ LR PSM4 10km 1310nm MPO Connector
Fetures
Feal Supports 40GBASE-LR4(PSM4);
Lane bit rate 10.3 Gb/s;
Up to 10km transmission on SMF;
DML laser and PIN receiver;
I2C interface with integrated Digital Diagnostic monitoring;
QSFP+ MSA package with single MPO(APC) connector receptacle;
Single +3.3V power supply;
Maximum power consumption 3.5 W;
Operating case temperature: 0 to +70 °C;
Complies with QSFP+ MSA: SFF-8436 and SFF-8679;
Complies with EU Directive 2011/65/EU (RoHS 6/6);
Application
40GBASE-LR4;
Recommended Operating Conditions
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Operating Case Temperature
TC
0
-
+70
°C
Power Supply Voltage
VCC
3.13
3.3
3.47
V
Power Supply Current
ICC
1.1
A
Maximum Power Dissipation
PD
3.5
W
Aggregate Bit Rate
BRAVE
41.25
Gb/s
Lane Bit Rate
BRLANE
10.3125
Transmission Distance
TD
10
km
Over SMF
