Optitap SC Waterproof Patch Cord
    Publish time 2022-12-22 15:25

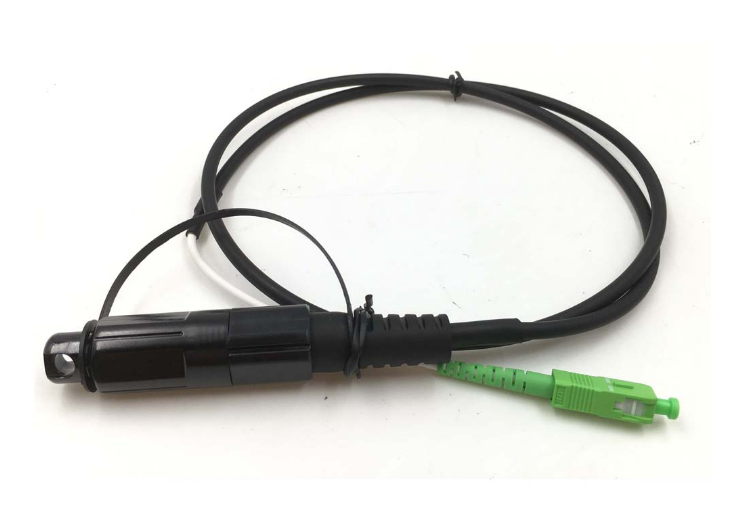

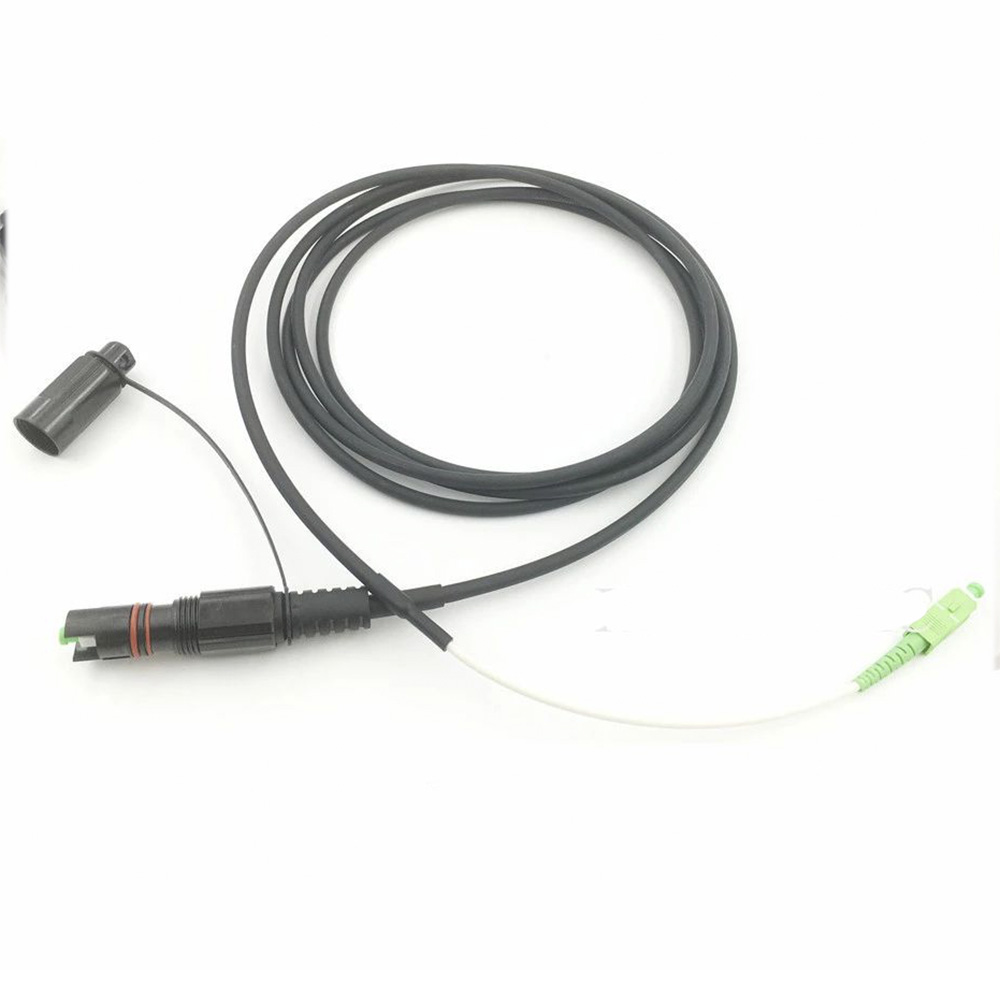

Optitap SC Waterproof Patch Cord

Optitap SC Waterproof Patch Cord

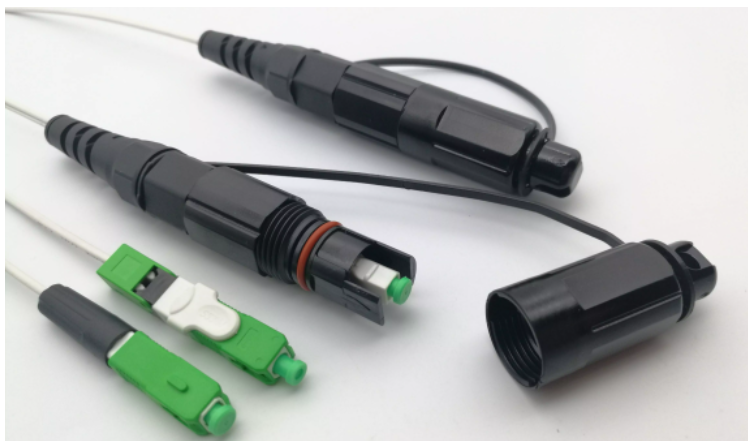

Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications

Feature

-IP-67 water and dust protection；
-Factory terminated for high performance；
--40ºC~85ºC operating temperature；
-445N (100 lbs) cable retention；
-Accepts 2.0mm to 7.0mm cable diameters；
-Low profile in-line receptacle available；
-No installation tools requires ；
-100 minimum mating cycles.

Application

-Provides superior weather resistance for FTTA and other outdoor applications;
-Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
-Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments;
-Can be installs without special tooling;
-Threaded style coupling;
-Provides bend protection for installation and long term use.



Connector Types

Type

Reference

Note





SC





IEC 61754-4

Single mode Simplex

APC: Green connectors UPC: Blue connectors

Multimode Simplex

UPC: Grey Connectors

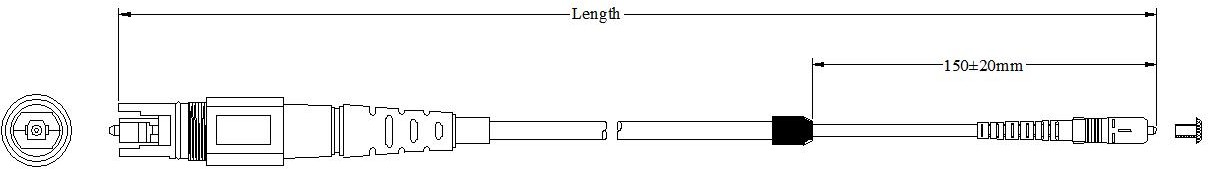

Dimensional Diagrams



1. Mini IP SC Outer Cable Assemblies

FTTA FTTH IP68 Optitap Compatible Connector, Optitap To SC Adapter, Optitap Patch Cord

Patch cord versions



Jumper tolerance requirement

Overall length (L) (M)

length of tolerance(CM)

0

+10/-0

20

+15/-0



L>40

+0.5%L/-0

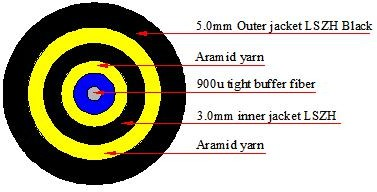

Cable Structure 1


FTTA FTTH IP68 Optitap Compatible Connector, Optitap To SC Adapter, Optitap Patch Cord

Cable Parameters








Cable Count



Out sheath Diameter

(MM)





Weight

(KG)

Minimum allowable Tensile Strength (N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius (MM)



Storage temperature

(℃)

short term

long term

short term

long term

short term

long term

1

5.0±0.2

26.5

800

400

2000

1000

20D

10D

-20 ~~ +60

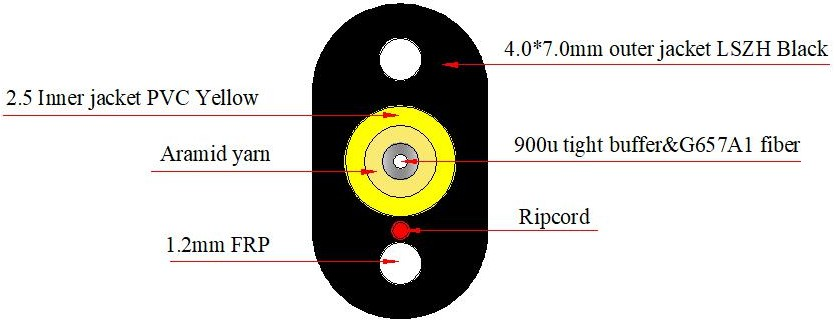

Cable Structure  2


FTTA FTTH IP68 Optitap Compatible Connector, Optitap To SC Adapter, Optitap Patch Cord

Cable Parameters








Cable Count







Out sheath Diameter

(MM)





Weight

(KG)

Minimum allowable Tensile Strength (N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius (MM)



Storage temperature

(℃)

short term

long term

short term

long term

short term

long term

1

(4.0±0.2)x(7.0±0.2)

42

1350

400

2200

1000

20D

10D

-20 ~~ +60



Optical Characteristics






Item

Parameter





Reference

Single mode

Multimode

Standard

Elite

Standard

Elite



Insertion loss

Typical≤0.30dB Max≤0.75dB

Typical≤0.15dB Max≤0.35dB

Typical≤0.50dB Max≤0.25dB

Typical≤0.10dB Max≤0.35dB



IEC 61300-3-34

Return loss

≥ 50dB (PC)

≥ 60dB (APC)

≥ 55dB (PC)

≥ 65dB (APC)

≥30dB(PC)

≥30dB(PC)

IEC 61300-3-6



End-Face Geometry


Item

UPC (Ref: IEC 61755-3-1)

APC (Ref: IEC 61755-3-2)

Radius of curvature (mm)

10 to 25

5 to 12

Fiber height (nm)

-100 to 100

-100 to 100

Apex offset (μm)

0 to 50

0 to 50

APC angle (°)

/

8° ±0.2°

Key error (°)

/

0.2° max

 End-Face Qualty (SM)

Zone

Range (μm)

Scratches

Defects

Reference

A: Core

0 to 25

None

None









IEC 61300-3-35:2015

B: Cladding

25 to 115

None

None

C: Adhesive

115 to 135

None

None

D: Contact

135 to 250

None

None

E: Rest of ferrule

None

None

End-Face Qualty (MM)

Zone

Range (μm)

Scratches

Defects

Reference

A: Core

0 to 65

None

None











IEC 61300-3-35:2015

B: Cladding

65 to 115

None

None

C: Adhesive

115 to 135

None

None

D: Contact

135 to 250

None

None

E: Rest of ferrule

None

None

 Mechanical Characteristics


Test

Conditions

Reference

Endurance

500 matings

IEC 61300-2-2

Vibration

Frequency: 10 to 55Hz, Amplitude: 0.75mm

IEC 61300-2-1

Cable retention

100N (main cable); 50N (connector part)

IEC 61300-2-4

Strength of coupling mechanism

80N for 2 to 3mm cable

IEC 61300-2-6

Cable torsion

15N for 2 to 3mm cable

IEC 61300-2-5

Fall

10 drops, 1m drop height

IEC 61300-2-12

Static lateral load

1N for 1h (main cable); 0.2N for 5min (ranch part)

IEC 61300-2-42

Cold

-25°C, 96h duration

IEC 61300-2-17

Dry heat

+70°C, 96h duration

IEC 61300-2-18

Change of temperature

-25°C to +70°C, 12 cycles

IEC 61300-2-22

Humidity

+40°C at 93%, 96h duration

IEC 61300-2-19
