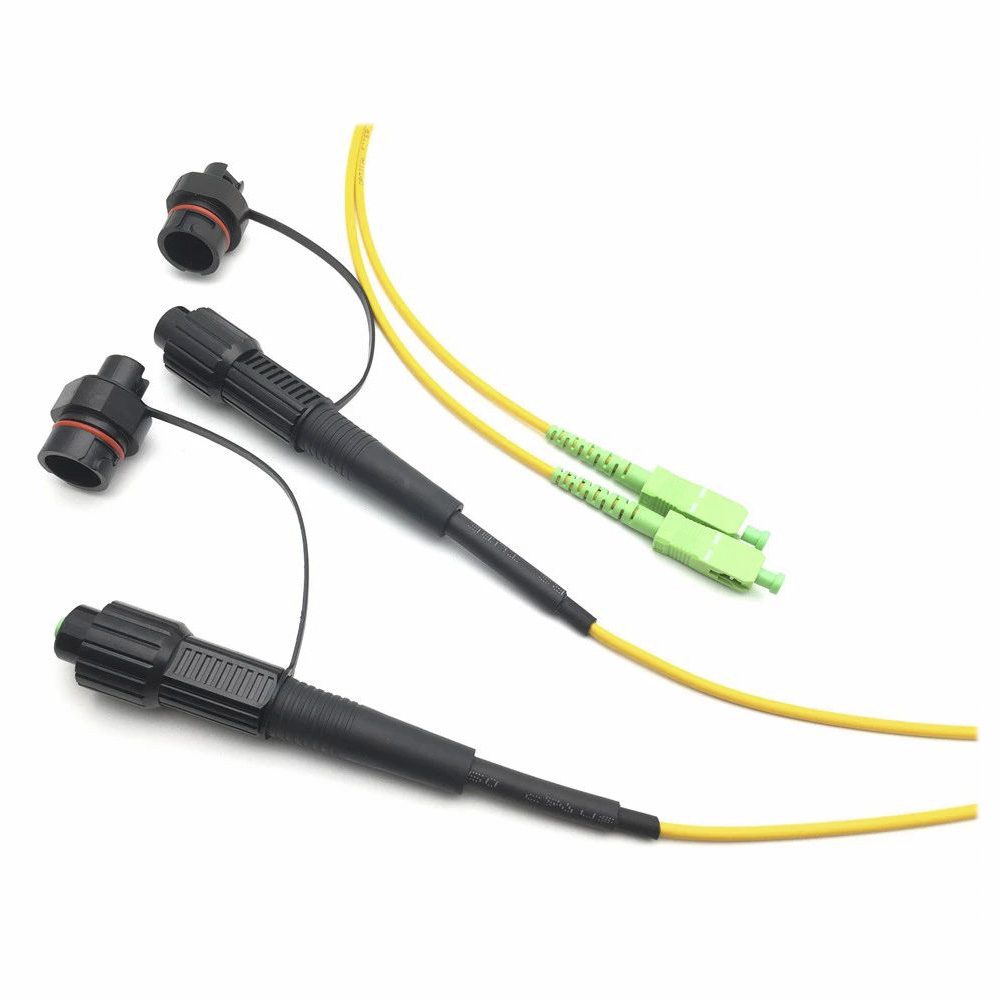

Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
Feature
-IP-67 water and dust protection；
-Factory terminated for high performance；
--40ºC~85ºC operating temperature；
-445N (100 lbs) cable retention；
-Accepts 2.0mm to 7.0mm cable diameters；
-Low profile in-line receptacle available；
-No installation tools requires ；
-100 minimum mating cycles.
Application
-Provides superior weather resistance for FTTA and other outdoor applications;
-Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
-Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments;
-Can be installs without special tooling;
-Threaded style coupling;
-Provides bend protection for installation and long term use.
