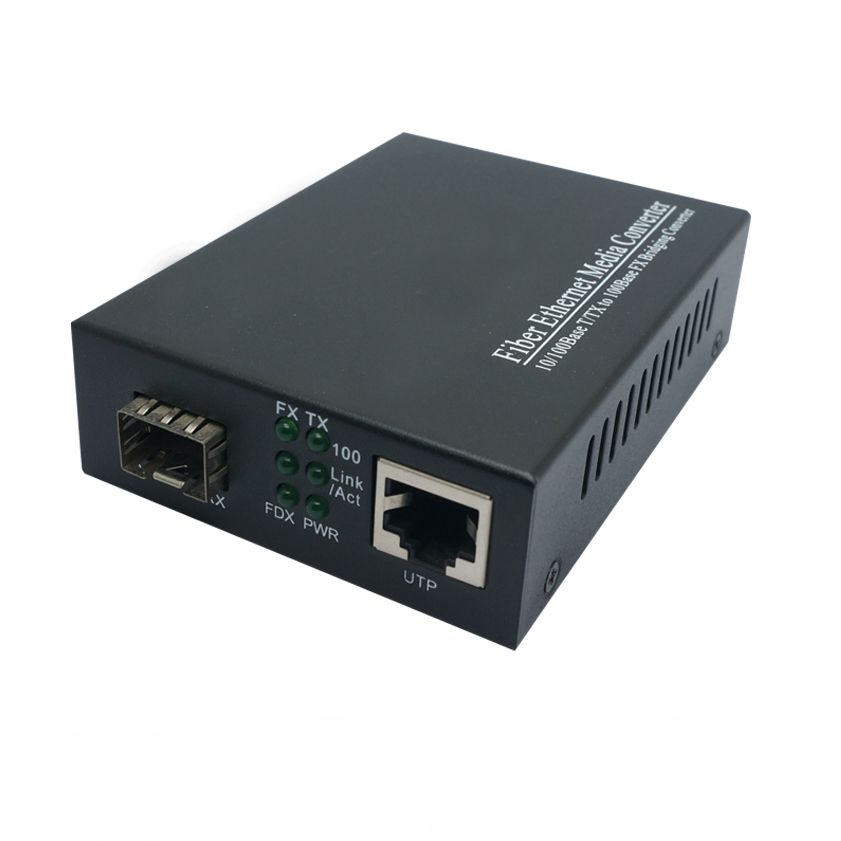

The converter is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver.It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based Network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis.The installation & operation procedures are simple & straight forward.Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Features
* 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter * Standard : IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab * Interface: 1xRJ45 connector / 1xSFP Slot * Plug-and-Play installation * Support Jumbo Frame (64-9216 Byte),optional * Conversion between different transmission speeds and media types * Standalone type or card type ,Can be installed into 2U 14/16Slots chassis * Auto-negotiating Ethernet port (Half/Full Duplex) * Auto-crossover Ethernet port (Supports Auto MDI/MDI-X) * Easy Installation, Easy Trouble shooting * Dimension: 229x122x50mm for packing, 94x70.6x26.5mm for device
Application
* Extend your Ethernet connection up to 0~120km away using fiber optics. * Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic Networks/backbones. * Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet Network nodes (e.g. connecting two buildings on the same campus). * Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Ethernet Network. * Bad industrial environment or high requirements for Lightning protection * Intelligent transportation supervisory system(ITS) and safe city * High-speed way supervisory/Tele-communication system, IP network camera * Security surveillance system for large corporations, multifunction network system * Long-distance multimedia schooling/ campus surveillance, long-distance broadcast television transmission system
