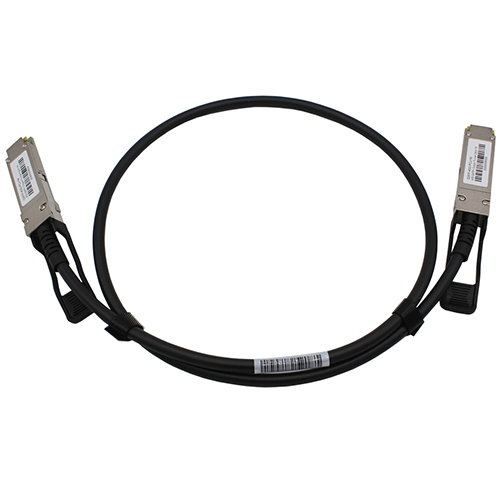

QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.
Features:
1. Compliant QSFP MSA specifications
2. Fully compatible with IEEE802.3ba and Infiniband QDR specifications
3. 40 Gb/s total bandwidth
4. 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
5. 100 ohm differential impedance system
6. Single 3.3V power supply, low power consumption, <1.5W
7. Low Near-End Crosstalk(NEXT)
8. Operating case temperature: -40 to 85°C
9. All-metal housing for superior EMI performance
10. Precision process control for minimization of pair-to-pair skew
11. AC coupling of PECL signals
12. EEPROM for cable signature & system communications
