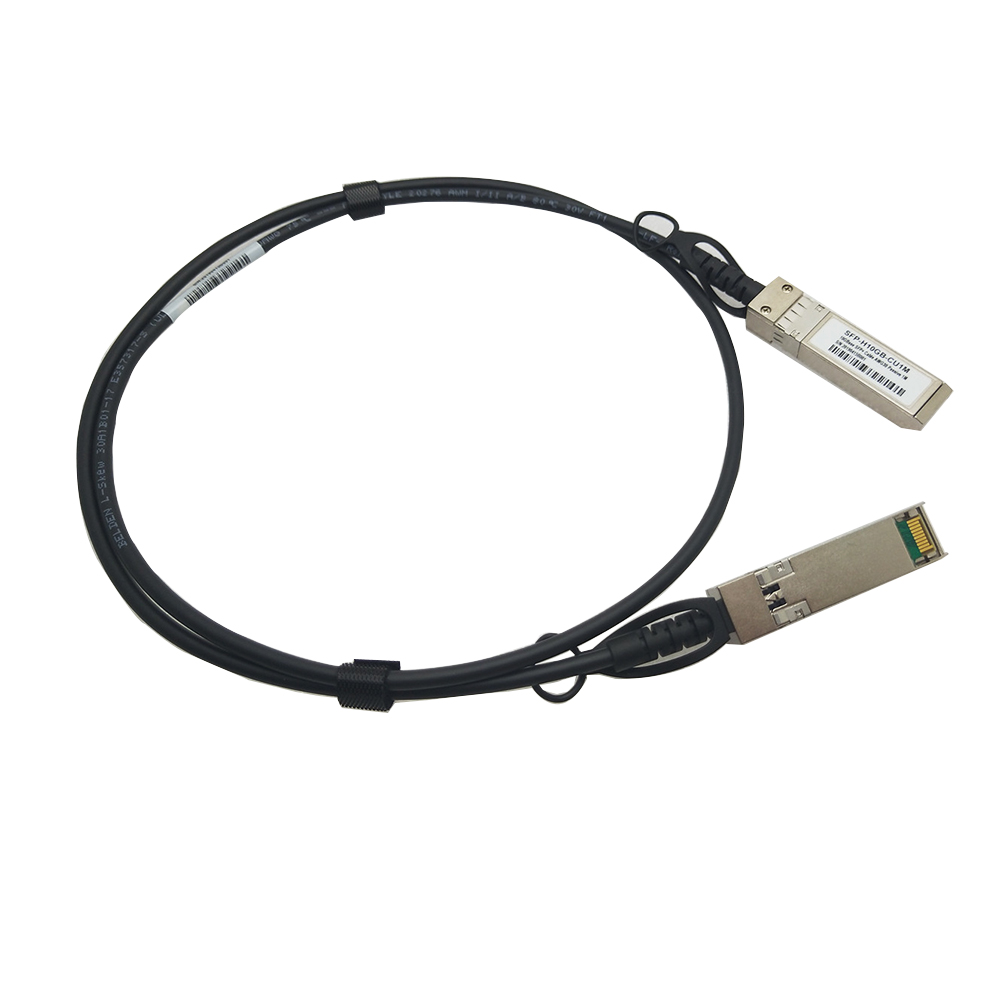

10G SFP+ To SFP+ DAC Cable
Features
• Compliant with SFF-8431, 8432 and 8472.
• Up to 10.3125Gbps data rate per channel
• Up to 7m transmission
• Operating temperature:-40℃ to +80℃
• Single 3.3V power supply
• RoHS compliant
Benefits
• Cost-effective copper solution
• Lowest total system power solution
• Lowest total system EMI solution
• Optimized design for Signal Integrity
Applications
• 10G Ethernet
General Product Characteristics
SFP+ DAC Specifications |
|
Number of Lanes | Tx & Rx |
Channel Data Rate | 10.3125 Gbps |
Operating Temperature | 0 to + 70°C |
Storage Temperature | -40 to + 85°C |
Supply Voltage | 3.3 V nominal |
Electrical Interface | 20 pins edge connector |
Management Interface | Serial, I2C |
Order Information ：
| Prodcts | Length | （AWG） |
| SFP+ 10G DAC Cable | 1M | 30AWG |
| SFP+ 10G DAC Cable | 2M | 30AWG |
| SFP+ 10G DAC Cable | 3M | 30AWG |
| SFP+ 10G DAC Cable | 5M | 24AWG |
| SFP+ 10G DAC Cable | 7M | 24AWG |
| SFP28 25G DAC Cable | 1M | 30AWG |
| SFP28 25G DAC Cable | 2M | 30AWG |
| SFP28 25G DAC Cable | 3M | 30AWG |
| SFP28 25G DAC Cable | 4M | 26AWG |
| SFP28 25G DAC Cable | 5M | 26AWG |
| QSFP 40G DAC Cable | 1M | 30AWG |
| QSFP 40G DAC Cable | 2M | 30AWG |
| QSFP 40G DAC Cable | 3M | 30AWG |
| QSFP 40G DAC Cable | 5M | 26AWG |
| QSFP 40G DAC Cable | 7M | 26AWG |
| QSFP to 4SFP+ DAC Cable | 0.5M | 30AWG |
| QSFP to 4SFP+ DAC Cable | 1M | 30AWG |
| QSFP to 4SFP+ DAC Cable | 1.5M | 30AWG |
| QSFP to 4SFP+ DAC Cable | 2M | 30AWG |
| QSFP to 4SFP+ DAC Cable | 2.5M | 30AWG |
| QSFP to 4SFP+ DAC Cable | 3M | 30AWG |
| QSFP to 4SFP+ DAC Cable | 5M | 26AWG |
| QSFP to 4SFP+ DAC Cable | 7M | 26AWG |
| QSFP28 DAC Cable | 1M | 30AWG |
| QSFP28 DAC Cable | 2M | 30AWG |
| QSFP28 DAC Cable | 3M | 30AWG |
| QSFP28 DAC Cable | 5M | 26AWG |
| QSFP28 to 4SFP28 DAC Cable | 1M | 30AWG |
| QSFP28 to 4SFP28 DAC Cable | 2M | 30AWG |
| QSFP28 to 4SFP28 DAC Cable | 3M | 30AWG |
| QSFP28 to 4SFP28 DAC Cable | 5M | 26AWG |
| Mini SAS HD 4i Ext SFF-8644 Cable | 1M | 30AWG |
| Mini SAS HD 4i Ext SFF-8644 Cable | 2M | 30AWG |
| Mini SAS HD 4i Ext SFF-8644 Cable | 3M | 30AWG |
| Mini SAS HD 4i Ext SFF-8644 Cable | 5M | 26AWG |
| Mini SAS HD 4i Ext SFF-8644 Cable | 7M | 26AWG |
