10G DWDM SFP
    Publish time 2022-10-11 10:23
10G DWDM SFP+
PAC-SFP+-ERxx10GDWDM C-Band40km
PAC-SFP+-ZRxx10GDWDM C-Band80km


10G DWDM SFP

Order Information:

10G DWDM SFP+
PAC-SFP+-ERxx10GDWDM C-Band40km
PAC-SFP+-ZRxx10GDWDM C-Band80km

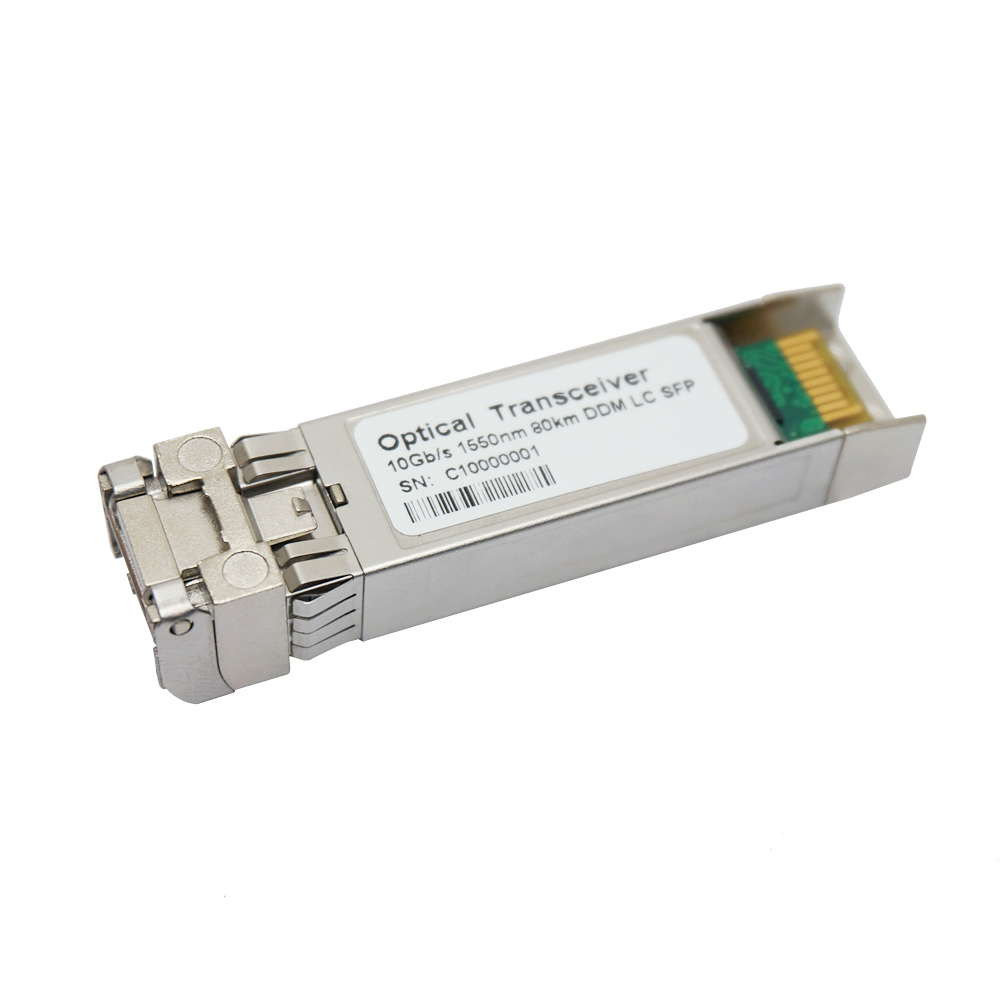

10G DWDM SFP+ Transceiver

Features

  •  Compliant with SFF-8413 and IEE802.3ae

  •  Suitable for use in 100GHz channel spacing DWDM systems

  •  Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates

  •  Cooled EML transmitter and APD receiver

  •  Low Power Dissipation 1.4W Typical (Maximum:2W)

  • -5ºC to 70ºC Operating Case Temperature

  •  Single 3.3V power supply

  •  Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power

  •  RoHS compliant and lead free



Applications

  •  10G Ethernet

  • 10G Fiber Channel (with/without FEC)


ITU ChannelFrequency(THz)WavelengthITU ChannelFrequency(THz)Wavelength
Product CodeProduct Code
17191.71563.86401941545.32
18191.81563.0541194.11544.53
19191.91562.2342194.21543.73
201921561.4243194.31542.94
21192.11560.6144194.41542.14
22192.21559.7945194.51541.35
23192.31558.9846194.61540.56
24192.41558.1747194.71539.77
25192.51557.3648194.81538.98
26192.61556.5549194.91538.19
27192.71555.75501951537.4
28192.81554.9451195.11536.61
29192.91554.1352195.21535.82
301931553.3353195.31535.04
31193.11552.5254195.41534.25
32193.21551.7255195.51533.47
33193.31550.9256195.61532.68
34193.41550.1257195.71531.9
35193.51549.3258195.8 1531.12
36193.61548.5159195.91530.33
37193.71547.72601961529.55
38193.81546.9261196.11528.77
39193.91546.12
