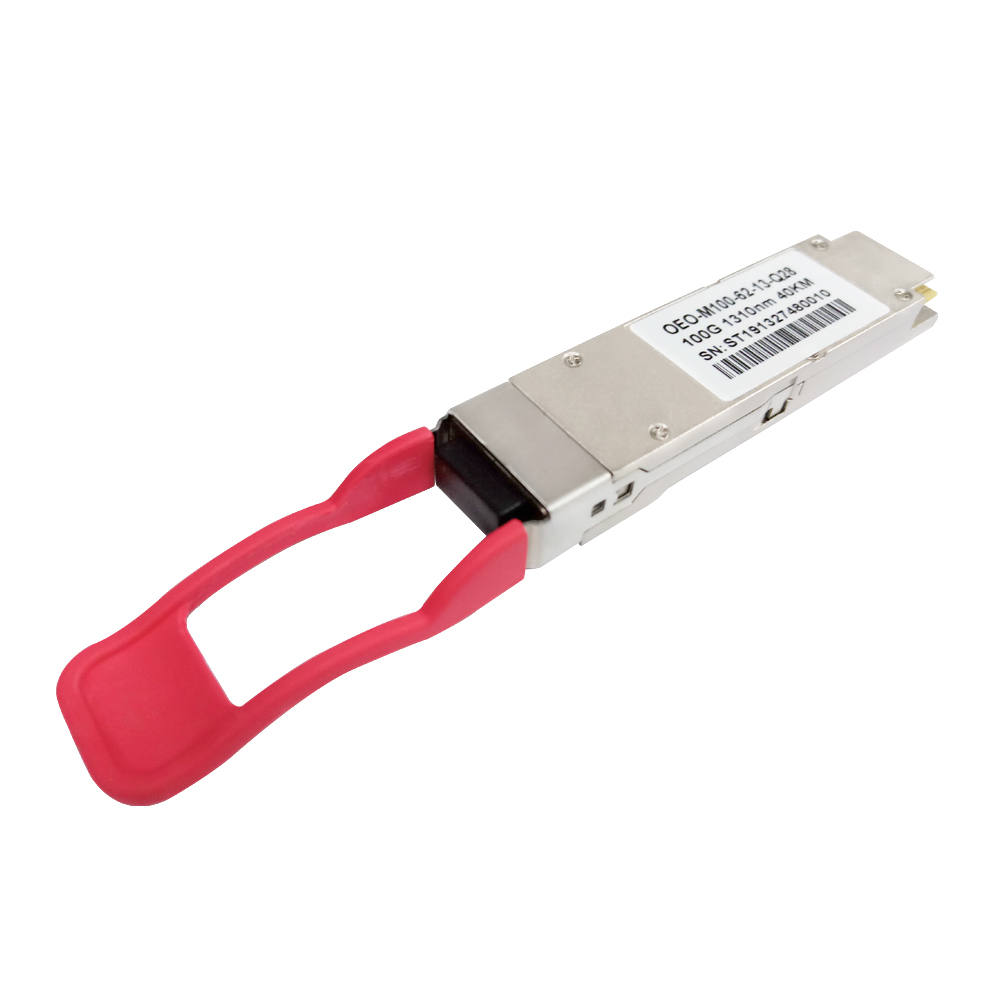

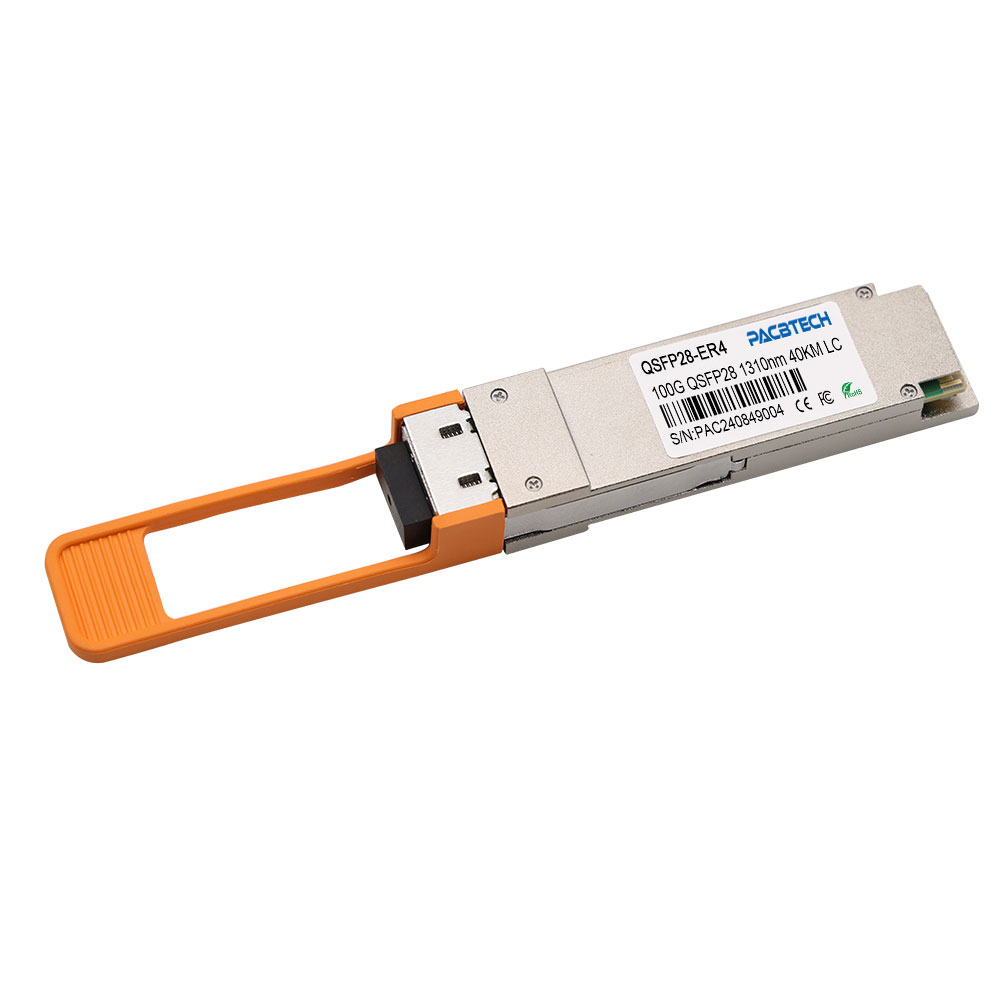

100G QSFP28 ER4 40km SMF Optical Transceiver Duplex LC

100GBASE-ER4 QSFP28 Optical Transceiver Module

FEATURES

• QSFP28 MSA compliant

• Hot pluggable 38 pin electrical interface

• 4 LAN-WDM lanes MUX/DEMUX design

• 4x25G electrical interface

• Maximum power consumption 5W

• LC duplex connector

• Supports 103.125Gb/s aggregate bit rate

• Up to 40km transmission on single mode fiber without FEC

• Operating case temperature: 0℃ to 70℃

• Single 3.3V power supply

• RoHS 2.0 compliant

APPLICATIONS

1. l 100GE Ethernet

2. l Telecom networking

3. l Data Center Interconnect

Description

PACBTECH’s PAC-100G-ER4 module is designed for 40km optical communication applications.

This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block

including 2 wire serial interface. The optical signals are multiplexed to a single-mode fiber through an

industry standard LC connector. A block diagram is shown in Figure 1.

Mechanical Dimensions
