4/6/8/12 Port MST Box
    Publish time 2023-06-14 11:09

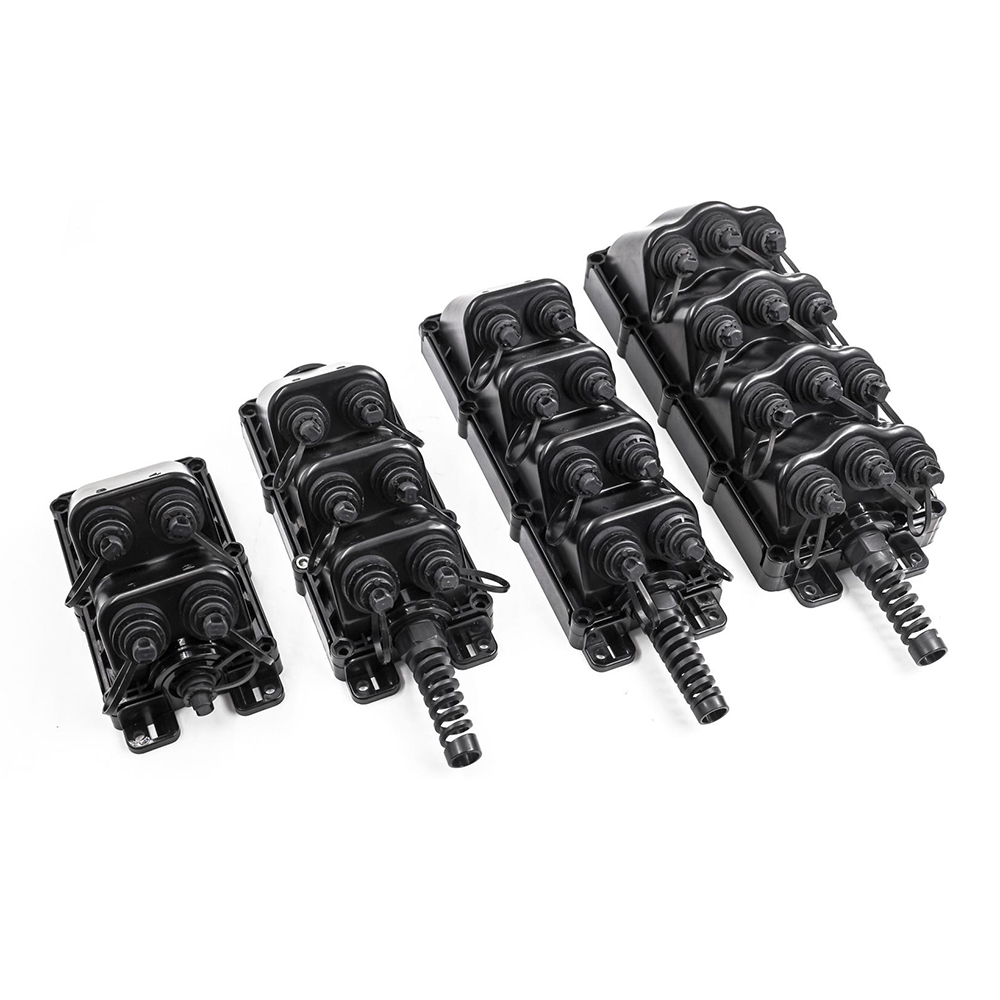

4/6/8/12 Port MST Box

4/6/8/12 Port MST Box

4/6/8/12 Port Multi Service Terminal (MST)  Closure



Description

The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.

Features

 Each box can be fully assembled to reduce the need for opening and opening the field in the field.

Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.

Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.

Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.

Factory terminated IP68 rated, high quality, high performance connectors.

Flexible choice of ports: 2, 4, 6, 8 terminals are available.

Kind of mounting bracket allowing for a wide range of mount options.


Specification


Port

 4, 6, 8, 12

Product Type

Access Terminal

IP Rate

IP68

Components Compliant

RoHs

Operating Temperature

-40 to +85℃

Adapter

OptiTap SC, OptiTap LC Duplex, OptiTap MPO

Entrance

Cable gland or OptiTap adapter

Feed Cable

1, 2, 4, 6, 8, 12 cores for options

Feed Cable Length

Customized

Stub Type

Stub Tail

Mounting Method

Hand-hole, Pedestal, Pole, Strand, Aerial


Cable Specification


Cable Type

Flat drop cable

Cable Size

4.5x8.0mm; 4.5x12.0mm

Cable Quantity

1

Cable Stub Length

50meter to customized

Attenuation, maximum

0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm

Directivity, minimum

60 dB

Wavelength Range

1260–1635 nm

IL,Terminal Connector, max

0.4dB

Return Loss, Connector, minimum

65dB

Item

Dimension

4Port

210.8x111.4x87.8mm

6Port

267.5x112.0x89.0mm

8Port

337.4x112.0x92.5mm

12Port

364.7x138.9x110.2mm


Technical Box Drawing

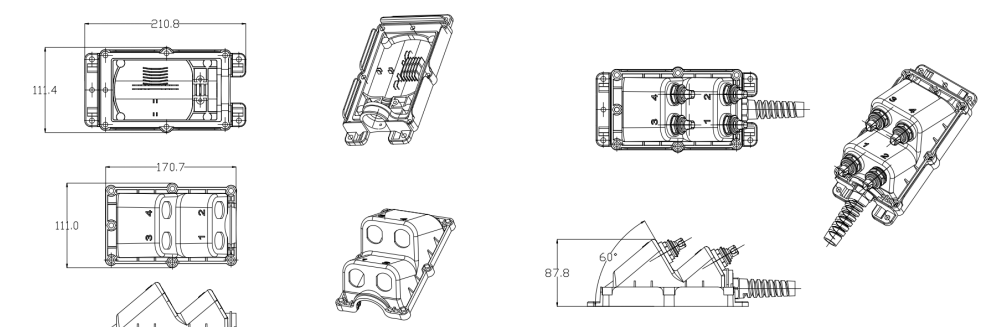

4Port Drawing

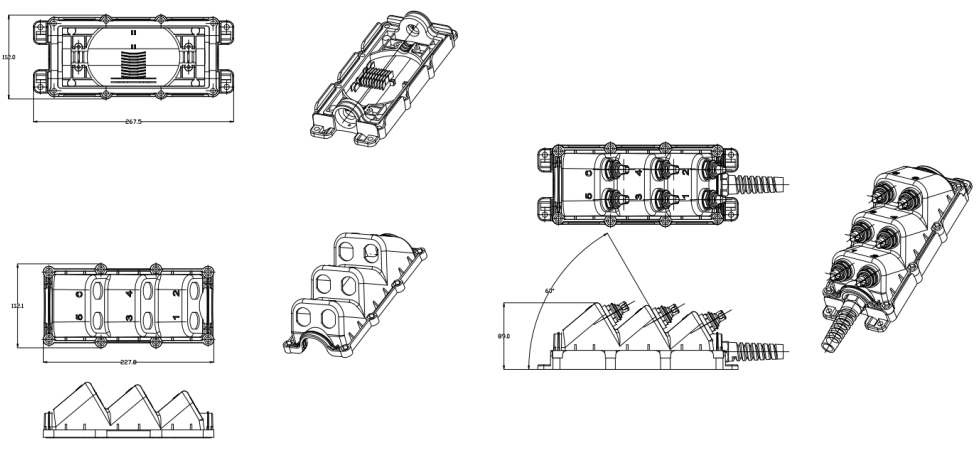

6Port Drawing

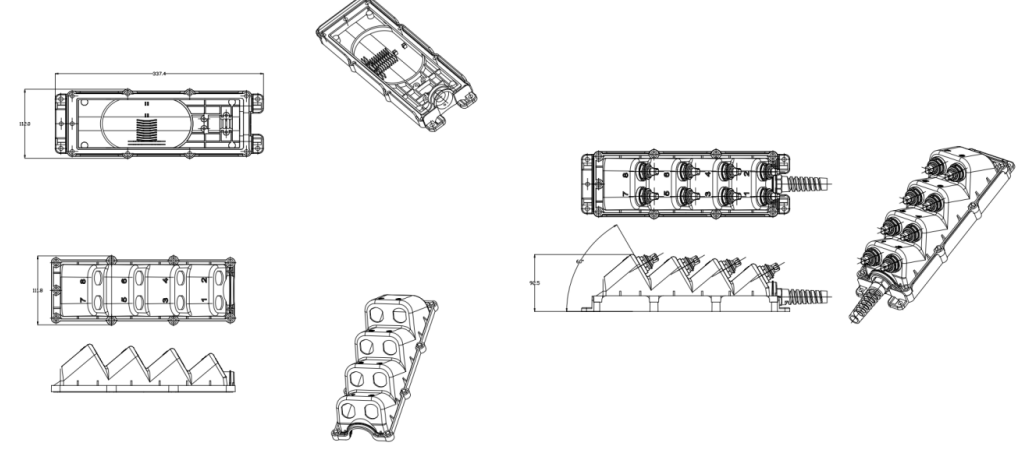

8Port Drawing

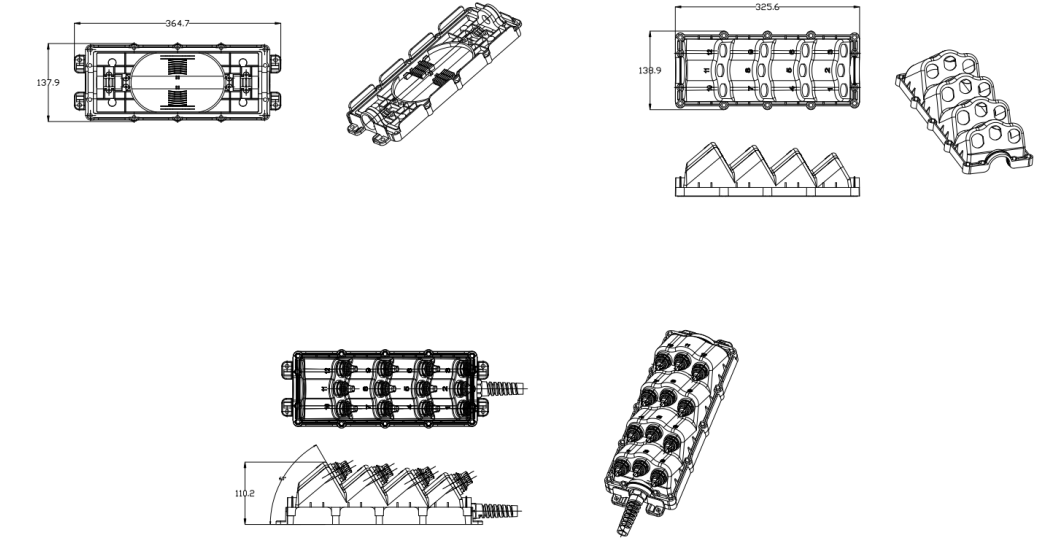

12Port Drawing

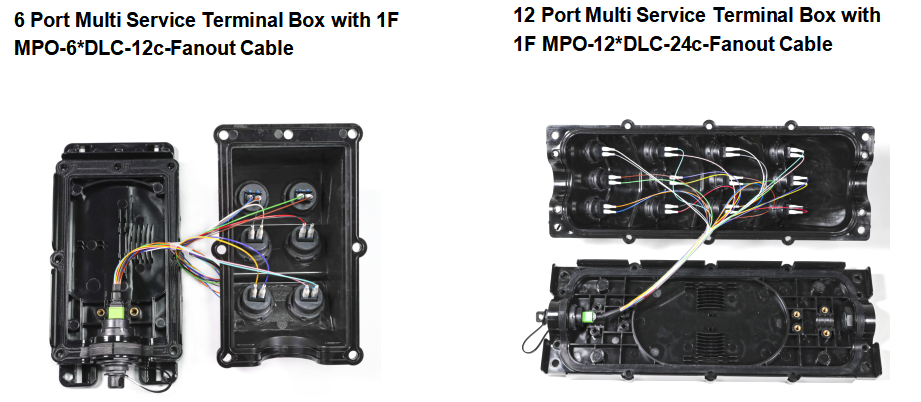

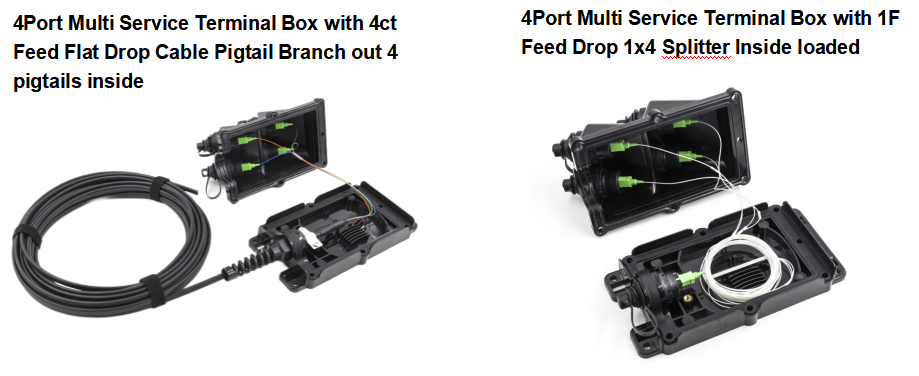

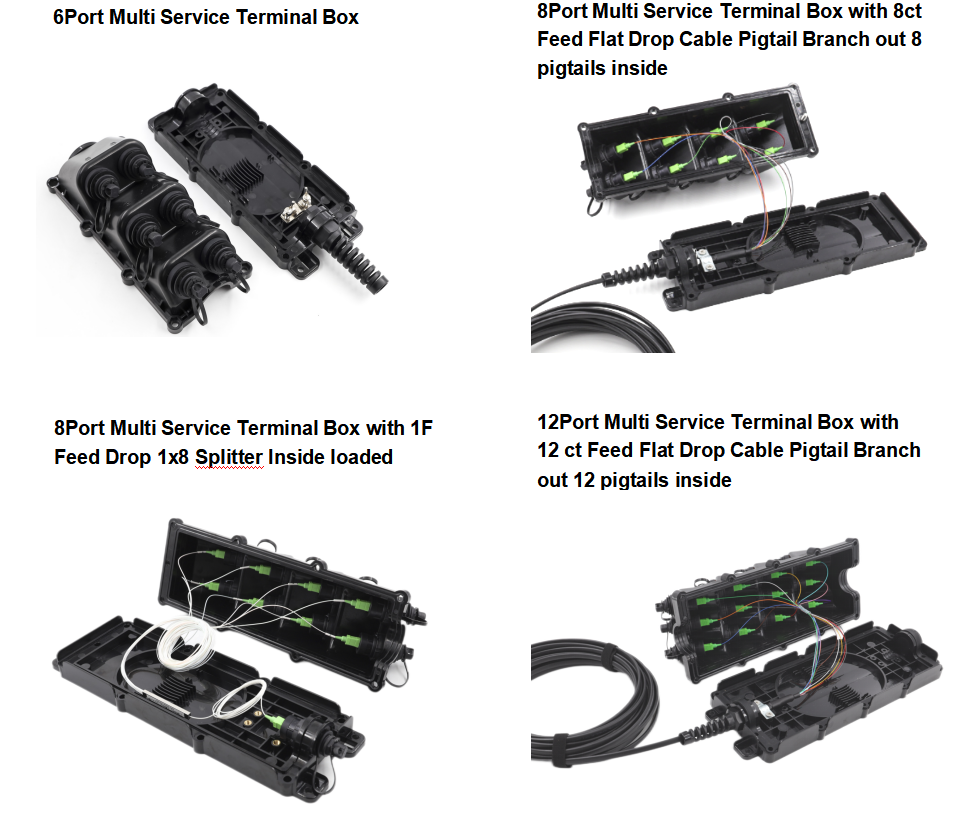

More Options
