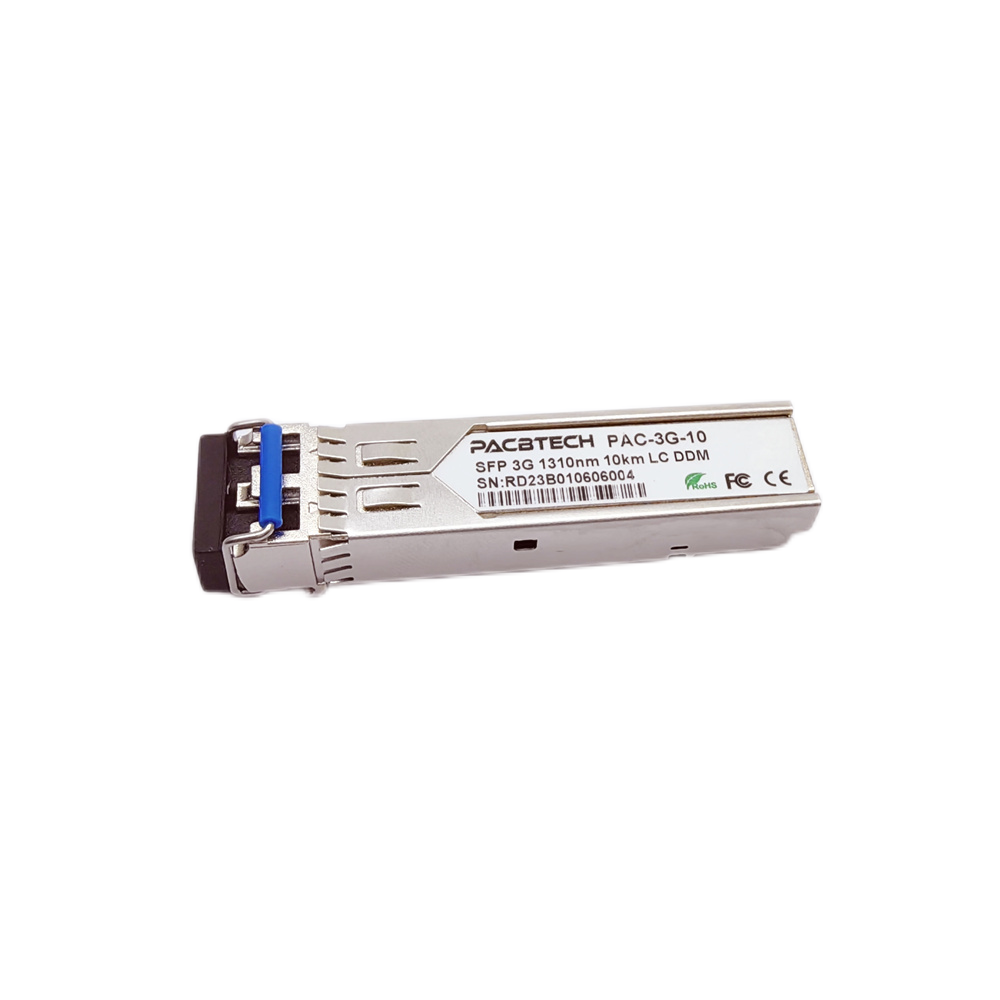

3G SDI Video Transceiver
    Publish time 2023-06-13 16:49

3G SDI Video Transceiver

3G SDI Video Transceiver

  Features:

  • HD-SDI SFP Transceiver available

  • SD-SDI SFP Transceiver available

  • 3G-SDI SFP Transceiver available

  • SMPTE 297-2006 Compatible .

  • Metal enclosure for Lower EMI

  • 310nm DFB laser and PIN photo detector

  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI

  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

  • Digital Diagnostic functions available through the I2C interface

  • Compatible with RoHS

  • +3.3V single power supply

  • Operating case temperature:

Standard :   0 to +70°C

Industrial : -40 to +85°C



Applications:

  • SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces .

  • HDTV/SDTV Service Interfaces.



Description：

The video series transceivers are high performance, cost effective modules for simplex video transmission application over single mode fiber.

The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE

259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with

SMPTE 297M-2006.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety                 requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

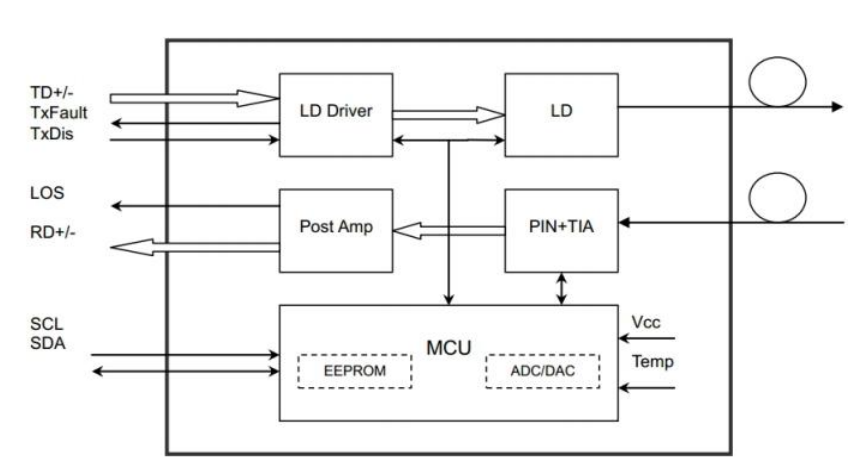

Block Diagram of Transceiver:

Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings



Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0 .5

4 .5

V

Storage Temperature

Ts

-40

+85

°C

Operating Humidity

-

5

85

%

Recommended Operating Conditions

Table 2 - Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Standard



Tc

0


+70

°C

Industrial

-40


+85

°C

Power Supply Voltage

Vcc

3 . 13

3 .3

3 .47

V

Power Supply Current

Icc



300

A

Data Rate



3


Gbps




Optical and Electrical Characteristics

OTP883D2DV-3:        (DFB and PIN, 1310nm , 20km Reach)

Table 3 - Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm


Spectral Width (-20dB)

σ



1

nm


Side Mode Suppression Ratio

SMSR

30



B


Average Output Power

Pout

-6

-2

0

dBm

1

Extinction Ratio

ER

9

10


B




Rise/Fall Time    (20%~80%)

SD-SDI



tr/tf



1500



ps



2

HD-SDI



270

3G-SDI



135









Total Output Jitter



PRBS and colour bar

SD-SDI



70

200









ps


HD-SDI



50

135

3G-SDI



70

100



pathological

SD-SDI



200


HD-SDI



1 15

300

3G-SDI



120


Data Input Swing Differential

VIN

400


1800

V

3

Input Differential Impedance

ZIN

90

100

1 10

Ω


TX Disable

Disable


2.0


VCC

V


Enable


0


0.8

V


TX Fault

Fault


2.0


VCC

V


Normal


0


0.8

V


Receiver

Centre Wavelength

λc

1260


1580

nm




Receiver Sensitivity

(PRBS)

SD-SDI




-25

dBm


HD-SDI




-23

dBm


3G-SDI




-22

dBm


Receiver Sensitivity

(Pathological)

SD-SDI




-25

dBm


HD-SDI




-23

dBm








3G-SDI




-22

dBm


Receiver Overload


0



dBm

4

LOS De-Assert

LOSD



-22

dBm


LOS Assert

LOSA

-29



dBm


LOS Hysteresis


1


4

B


Data Output Swing Differential

Vout

650

800

1000

V

3



LOS

High

2.0


Vcc

V


Low



0.8

V


Notes:

1. The optical power is launched into SMF .

2. Rise and fall times, 20% to 80%, are measured following a fourth-order Bessel-Thompson filter with a bandwidth of 0.75 x clock frequency corresponding to the serial data rate

3. PECL input, internally AC-coupled and terminated .

4. Internally AC-coupled .







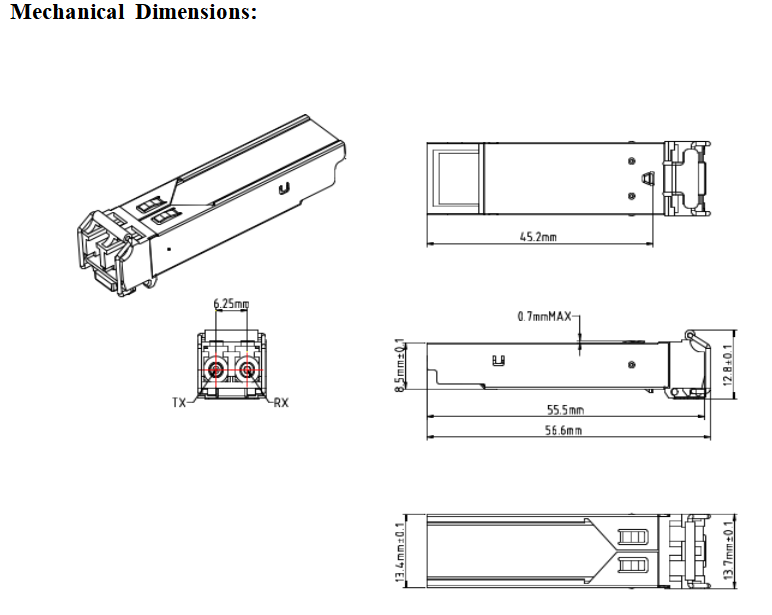

Ordering information:

PAC-3GVS20-31           3Gbps Video SFP 1310nm, LC, 20km,      0°C~+70°C ,With Digital Diagnostic

PAC-3GVS20-31I          3Gbps Video SFP 1310nm, LC, 20km,      -40°C~+85°C, With Digital Diagnostic
