HD-SDI Unidirectional Fiber Optic Transmitter and Receiver
Features
«1/2/4/8/16-ch unidirectional HD-SDI video with embedded audio over one fiber
« Range from 19.4Mb/s to 1.485Gb/s
« SMPTE 292M (1.485Gb/s) clock recovery
« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s)、M2S and DVB-ASI (270Mb/s) standard
« Output wavelength 1310nm、1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
« 150m automatic cable equalization, all the 1.485 Gb/s rate below（Belden 1694A）
« Optional network management system
« LED status indicators monitor the critical parameters
« Optional network system
« Support hot swap
« Support stand-alone, 1U rack mount and 4U rack mount
Applications
« Remote OB Van/Truck Video Feeds
« Broadcast Studio Camera Feeds
« Long-haul Signal Transport
« TV station/video conference
« Lecture Hall Projector Connectivity
« Medical/Surgical Room Broadcast
« Building to Building video conference calling
« Small corporate campus video links
Serial TV BNC Input |
TV signal standard | SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate （19.4Mb/s - 1.485Gb/s） |
Input channel | 4 |
Reflection loss | >15DB |
Equilibrium | 0-150m @ 1.485Gb/s |
Connector | 75Ω BNC |
Optic Output |
Channel | 1 |
Type | Single-mode/fiber (multimode optional) |
Wavelength | 1310nm /1550nm |
Reflection loss | > 15dB |
Jitter | < 0.2UI |
Connector | FC/PC（SC/PC optional） |
Serial TV BNC Output (EO/OE) |
Output channels | 4 |
Signal level | 800mV nominal |
Rise/fall time | 200Ps nominal |
Overshoot | <10% amplitude |
Reflection loss | > 15dB |
Jitter | < 0.2UI |
Connector | 75Ω BNC |
Power and environmental indicator |
Operating temperature | -45℃～＋50℃ |
Pressure | 1A@12VDC |
Power | 12W |
EMI/RFI | FCC Part 15 Class A, EU EMC standard |
Average time trouble-free | >100000 hours |
Other |
Stand alone Dimension | 173mm (H) ×276mm (D) ×40.6mm (W) |
Weight | 2Kg |
1U rack mount | Optional |
Order Information :

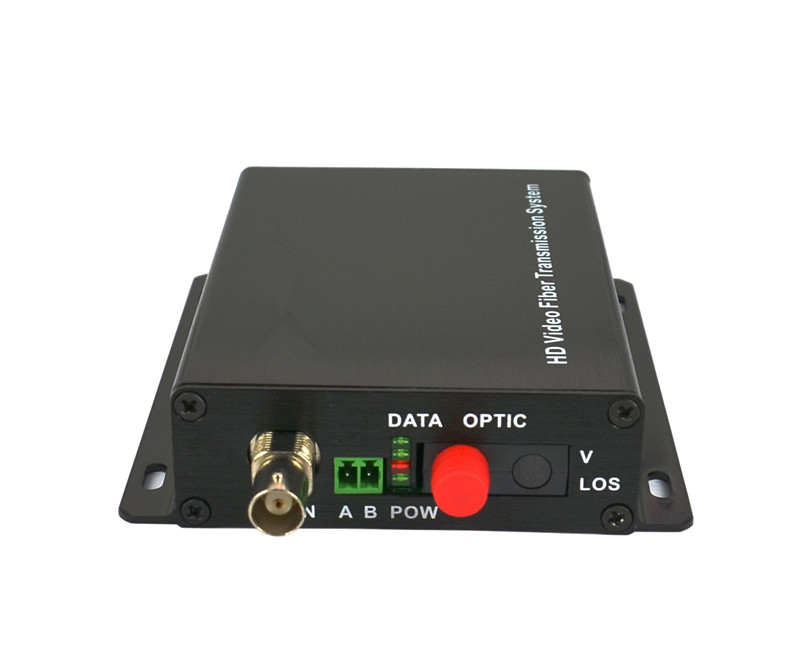

PBT-3001: 1CH HD-SDI Video with embedded audio Fiber Optic Transmitter/Receiver Singlemode Single fiber 20km FC/UPC

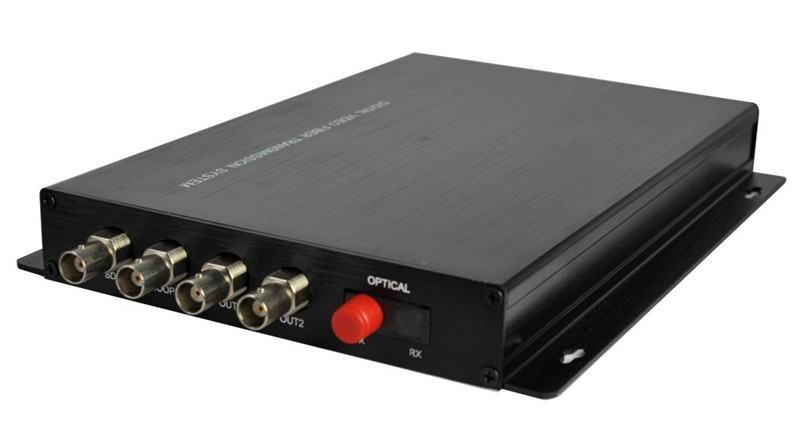

PBT-3004CH HD-SDI Video with embedded audio Fiber Optic Transmitter/Receiver Singlemode Single fiber 20km FC/UPC

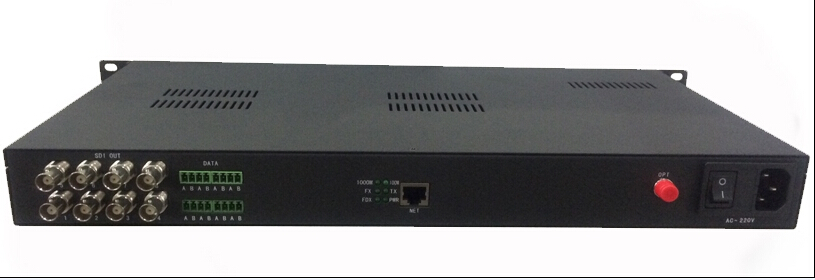

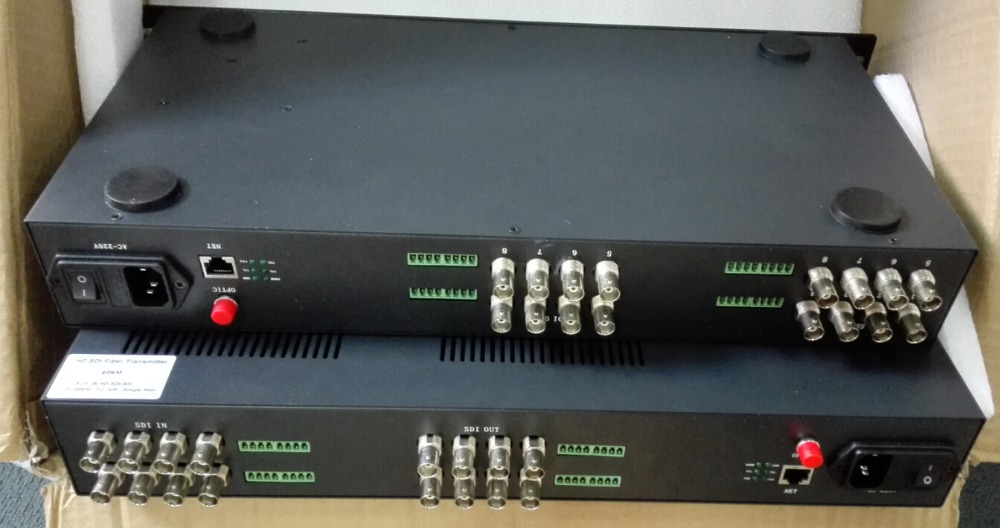

PBT-3008: 8CH HD-SDI Video with embedded audio Fiber Optic Transmitter/Receiver Singlemode Single fiber 20km FC/UPC
PBT-3016: 16CH HD-SDI Video with embedded audio Fiber Optic Transmitter/Receiver Singlemode Single fiber 20km FC/UPC
