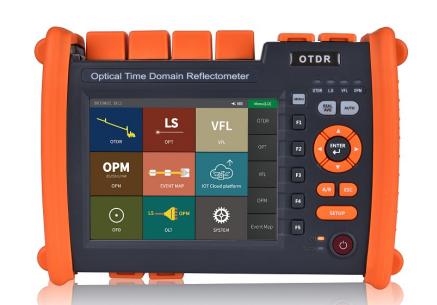

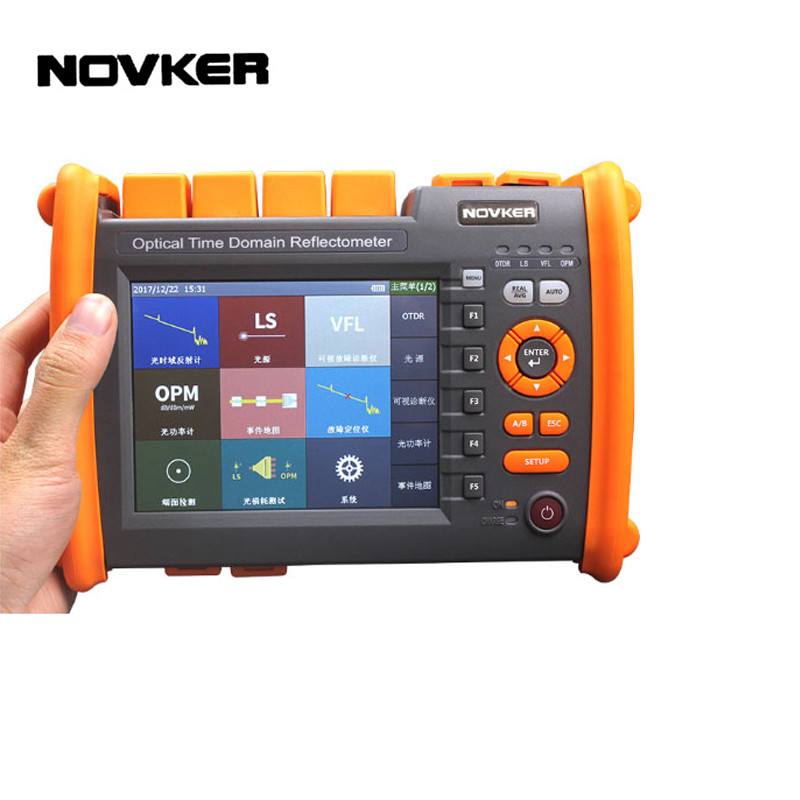

NK5600 OTDR

NK5600 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous

Applications

 It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.

Features

High performance test

5.8 inch color TFTLCD display,

touch/ key dual operation

Dynamic range:. 32/30dB

Less than 0.8 meters ultra

short event blind area

testing optical fiber jumper freely..

Link optical nondestructive testing

Signal optical detection function

OTDR.

Stable laser source

Visual red light fault location (VFL)

Optical power meter (OPM)

Mutifuntional test - high configuration

Intelligent Optical Link Mapper [iOLM]

Optical fiber end face detection

Optical loss test

Fault location

·Convenient operation

One key automatic test

unique diagnostic function for test

Multi wavelength simultaneous testing function

Ethernet Remote control

·Convenient data processing

English and Chinese input function

Automatic data storage

SOR Batch processing

Remote upgrade function

IOT Cloud Platform soon

High reliability

20h Super long standby

1.5 meter drop test

Waterproof and splash proof

Operating temperature -10℃~50℃

Technical specifications and ordering information
