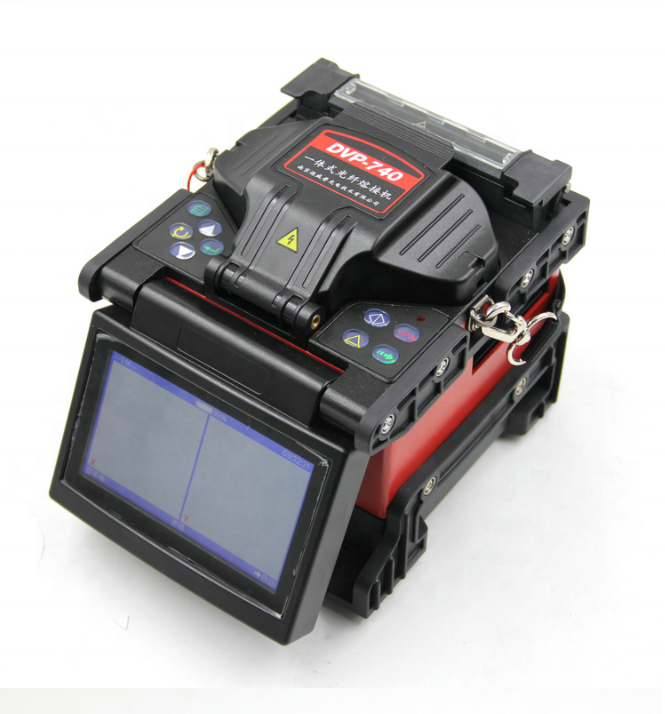

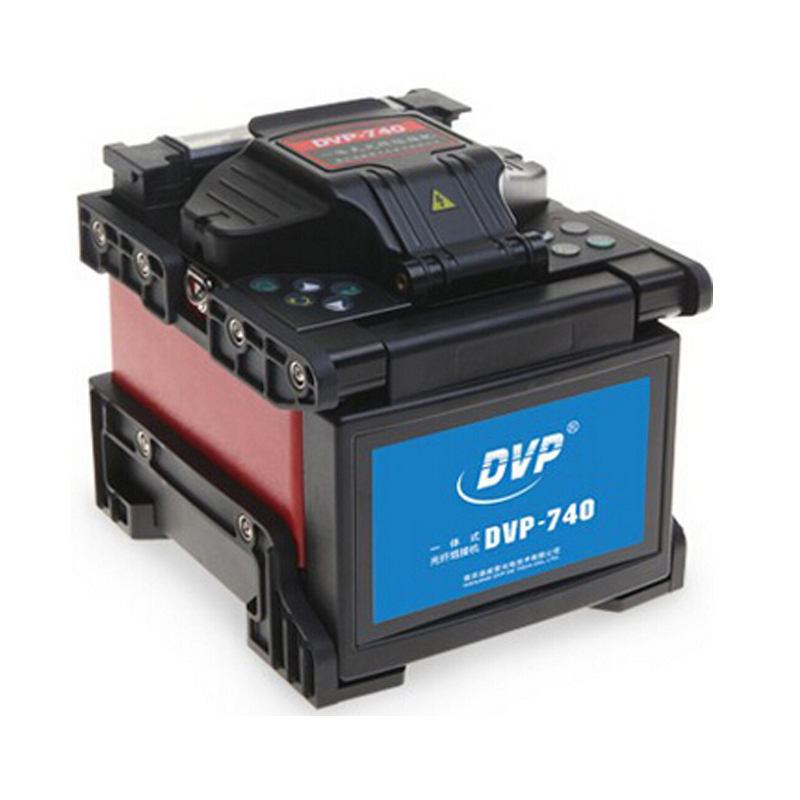

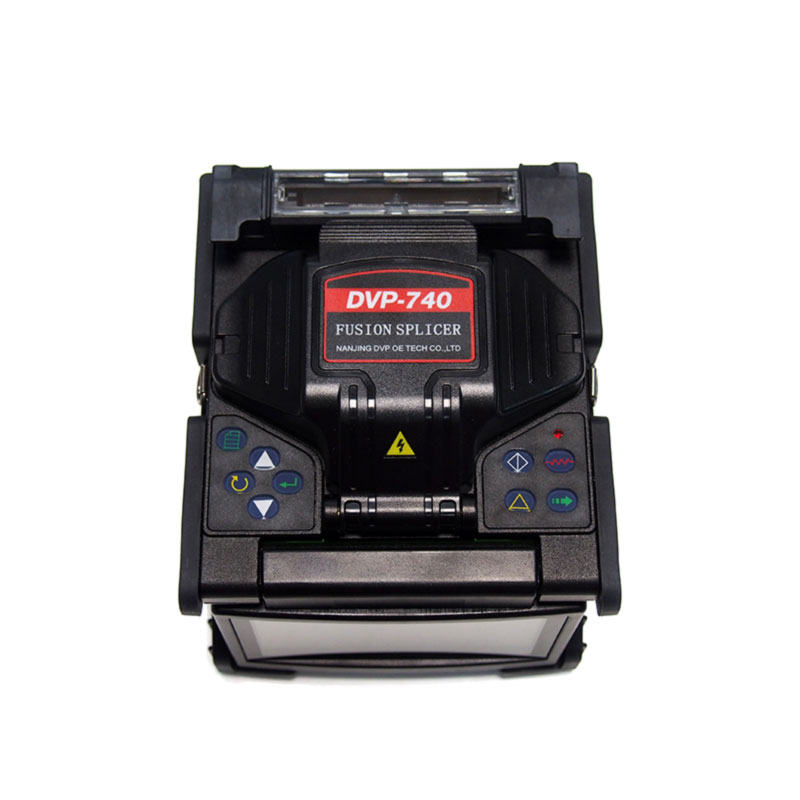

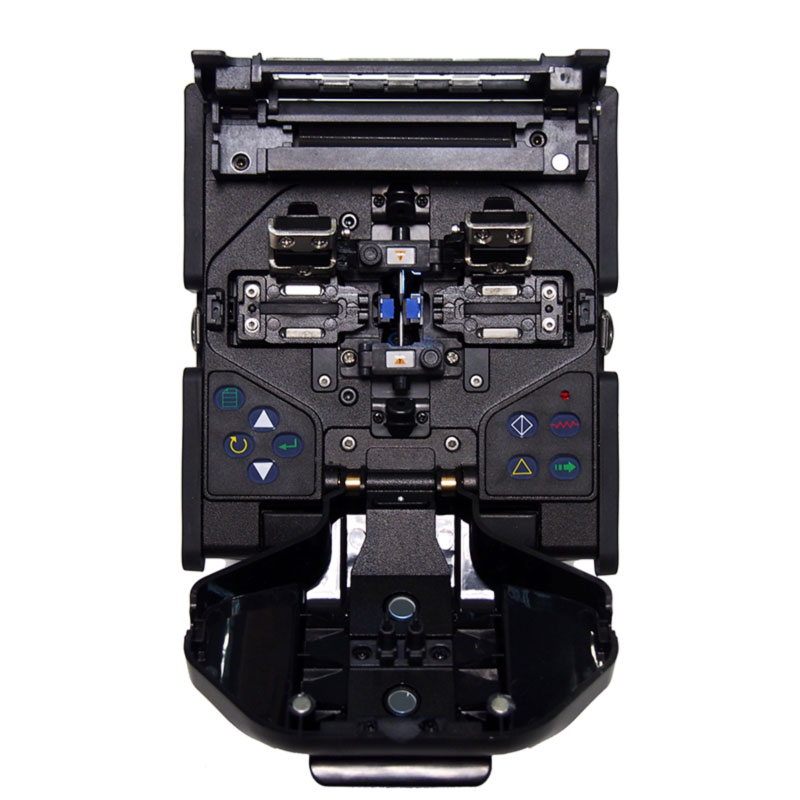

DVP-740 Single Fiber Fusion Splicer
Features
l Compact & Light weight
l Fully Automatic Operation
l 5000m altitude ensures Splice Quality
l SYSTEM TEST ensures the best working condition
l Color LCD monitor
l Pause function, convenient for scientific research
l Store 8000 groups of splice results
l USB&DC interface
l High battery capacity, up to 120 times of continuous splice and heat
SPECIFICATIONS
Applicable fibers | SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector. |
Fiber cleaved length | 8-22mm |
Average splice loss | 0.02dB(SM)、0.01dB(MM)、0.05dB(DS)、0.04dB(NZDS) |
Return loss | ≥60dB |
Tension test | 2.0N(200gf)(Standard) |
Protection sleeve length | 20mm, 40mm, 60mm and more . |
Splice Program | 5 groups of preset programs, 1 group of manual setting |
Language | English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
Environment conditions | -25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude) |
Storage environment | -40～ +80℃ (temperature) , 0～95％RH (humidity) |
Power supply | AC adaptor： 85～260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
Dimensions/Weight | 142（D）×122（W）×138（H）mm/1.95kg (with battery) |

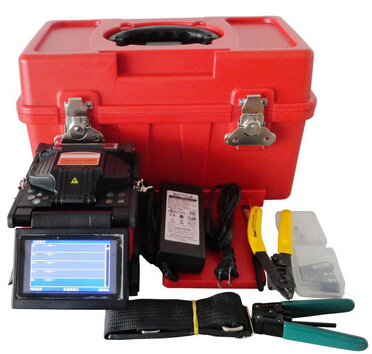

STANDARD PACKAGE
Fusion Splicer, Internal Battery, Charger, Spare Electrodes, Cooling Tray, Manual Instruction, Carry Case, Fiber Cleaver, Fiber Stripper, AC Adaptor, AC Power Cord
